837-040-520-202
ActiveEDAC Inc.

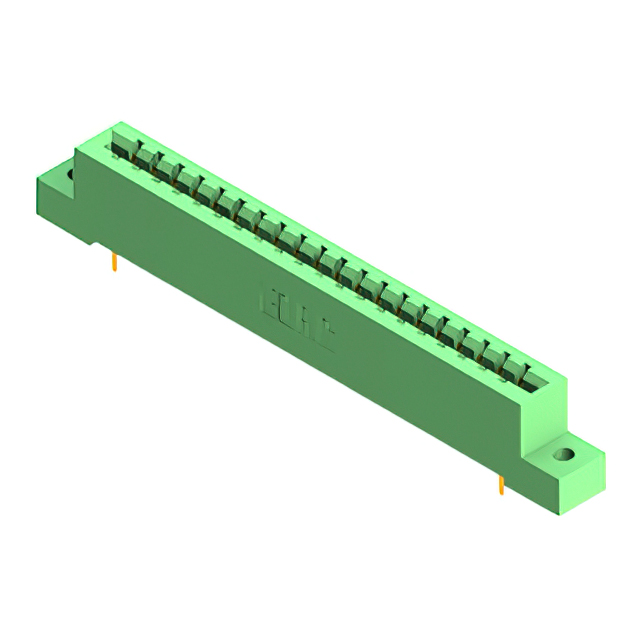

CONN EDGE DUAL FMALE 40POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-040-520-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 40POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-040-520-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
837-040 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Read Out | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Gender | Mounting Type | Card Type | Material - Insulation | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions | Pitch [x] | Pitch [x] | Features | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Solder Eyelet(s) | Dual | 20 | 20 | 20 | Female | Through Hole | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 °C | Green | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 40 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Solder | Dual | 20 | 20 | 20 | Female | Through Hole | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 °C | Green | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 40 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Solder | Dual | 20 | 20 | 20 | Female | Through Hole | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 °C | Green | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 40 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Solder | Dual | 20 | 20 | 20 | Female | Board Edge Straddle Mount | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 °C | Green | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 40 | 0.156 in | 3.96 mm | Card Extender | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Wire Wrap | Single | Female | Through Hole | Non Specified - Single Edge | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 °C | Green | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 40 | 0.156 in | 3.96 mm | 40 | 3.25 mm | 0.128 in | |||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Wire Wrap | Dual | 20 | 20 | 20 | Female | Through Hole | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 °C | Green | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 40 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Solder | Single | Female | Through Hole | Non Specified - Single Edge | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 °C | Green | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 40 | 0.156 in | 3.96 mm | 40 | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | Dual | 20 | 20 | 20 | Female | Through Hole | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 °C | Green | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 40 | 0.156 in | 3.96 mm | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Solder | Dual | 20 | 20 | 20 | Female | Through Hole | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 °C | Green | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 40 | 0.156 in | 3.96 mm | |||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | M3 Threaded Insert Top Mount Opening | Wire Wrap | Single | Female | Through Hole | Non Specified - Single Edge | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 °C | Green | Gold | 10 Áin | 0.25 Ám | Copper Alloy | 40 | 0.156 in | 3.96 mm | 40 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-040 Series
40 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
