837-040 Series

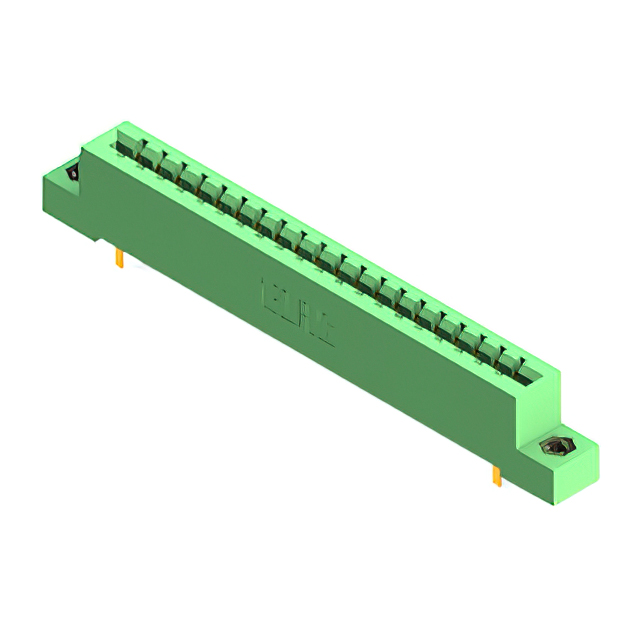

40 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	837-040-500-208

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole
Number of Positions	20, 40
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

837-040 Series

...

Part	Contact Finish	Card Thickness (Min)	Card Thickness (Max)	Pitch	Card Type	Number of Rows	Number of Positions	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Read Out	Contact Type	Termination	Contact Material	Gender	Operating Temperature (Max)	Operating Temperature (Min)	Color	Mounting Type	Termination Rows	Material - Insulation	Features
EDAC Inc. 837-040-500-803	Gold	0.054 in	0.07 in	0.156 in	Dual Edge Non Specified	2	20 40	0.116 in	Floating Bobbin Top Mount Opening	10 Ąin	Dual	Cantilever	Solder Eyelet(s)	Copper Alloy	Female	125 °C	-40 °C	Green	Through Hole	2 rows	DAP Diallyl Phthalate
EDAC Inc. 837-040-542-612	Gold	0.054 in	0.07 in	0.156 in	Non Specified Single Edge	1	40	0.128 in	Side Mount Opening Unthreaded	10 Ąin	Single	Cantilever	Wire Wrap	Copper Alloy	Female	125 °C	-40 °C	Green	Through Hole	1 rows	DAP Diallyl Phthalate
EDAC Inc. 837-040-541-204	Gold	0.054 in	0.07 in	0.156 in	Dual Edge Non Specified	2	20 40	0.156 in	Flush Mount Top Opening Unthreaded	10 Ąin	Dual	Cantilever	Wire Wrap	Copper Alloy	Female	125 °C	-40 °C	Green	Through Hole	2 rows	DAP Diallyl Phthalate
EDAC Inc. 837-040-523-212	Gold	0.054 in	0.07 in	0.156 in	Dual Edge Non Specified	2	20 40	0.128 in	Flush Mount Side Opening Unthreaded	10 Ąin	Dual	Cantilever	Solder	Copper Alloy	Female	125 °C	-40 °C	Green	Through Hole	2 rows	DAP Diallyl Phthalate
EDAC Inc. 837-040-560-207	Gold	0.054 in	0.07 in	0.156 in	Dual Edge Non Specified	2	20 40		Flush Mount M3 Threaded Insert Top Opening	10 Ąin	Dual	Cantilever	Solder	Copper Alloy	Female	125 °C	-40 °C	Green	Board Edge Straddle Mount	2 rows	DAP Diallyl Phthalate	Card Extender
EDAC Inc. 837-040-542-802	Gold	0.054 in	0.07 in	0.156 in	Dual Edge Non Specified	2	20 40	0.128 in	Top Mount Opening Unthreaded	10 Ąin	Dual	Cantilever	Wire Wrap	Copper Alloy	Female	125 °C	-40 °C	Green	Through Hole	2 rows	DAP Diallyl Phthalate
EDAC Inc. 837-040-524-604	Gold	0.054 in	0.07 in	0.156 in	Non Specified Single Edge	1	40	0.156 in	Top Mount Opening Unthreaded	10 Ąin	Single	Cantilever	Solder	Copper Alloy	Female	125 °C	-40 °C	Green	Through Hole	1 rows	DAP Diallyl Phthalate
EDAC Inc. 837-040-500-208	Gold	0.054 in	0.07 in	0.156 in	Dual Edge Non Specified	2	20 40		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Dual	Cantilever	Solder Eyelet(s)	Copper Alloy	Female	125 °C	-40 °C	Green	Through Hole	2 rows	DAP Diallyl Phthalate
EDAC Inc. 837-040-520-201	Gold	0.054 in	0.07 in	0.156 in	Dual Edge Non Specified	2	20 40			10 Ąin	Dual	Cantilever	Solder	Copper Alloy	Female	125 °C	-40 °C	Green	Through Hole	2 rows	DAP Diallyl Phthalate
EDAC Inc. 837-040-541-607	Gold	0.054 in	0.07 in	0.156 in	Non Specified Single Edge	1	40		M3 Threaded Insert Top Mount Opening	10 Ąin	Single	Cantilever	Wire Wrap	Copper Alloy	Female	125 °C	-40 °C	Green	Through Hole	1 rows	DAP Diallyl Phthalate
