M50-3610642 - M50-3610642

M50-3610642

Active
Harwin Inc.

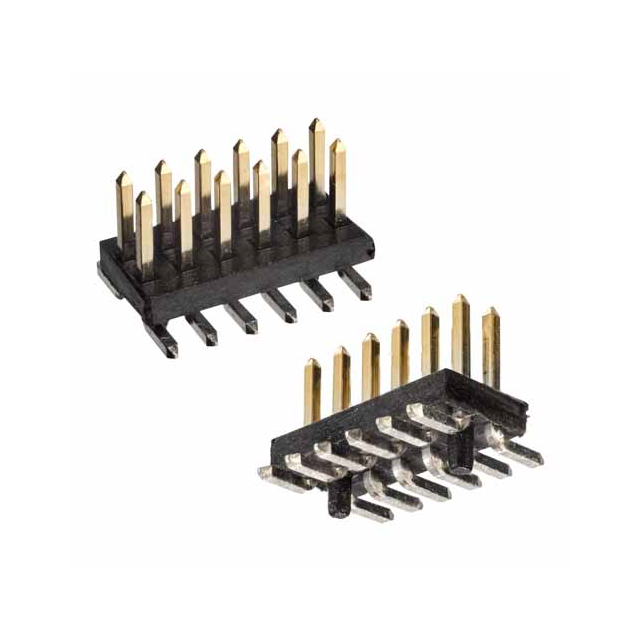

CONN, HEADER, 12POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50-3530842M50-3000345+6
M50-3610642 - M50-3610642

M50-3610642

Active
Harwin Inc.

CONN, HEADER, 12POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM50-3530842M50-3000345+6

Technical Specifications

Parameters and characteristics for this part

SpecificationM50-3610642
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating0.203 Ám
Contact Finish Thickness - Mating8 Áin
Contact Finish Thickness - Post2.03 µm
Contact Finish Thickness - Post80 µin
Contact Length - Mating3 mm
Contact Length - Mating0.118 in
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
FeaturesBoard Guide
Insulation ColorBlack
Insulation Height0.039 "
Insulation Height1 mm
Insulation MaterialThermoplastic
Mated Stacking Heights3.9 mm, 6.08 mm, 5.3 mm, 6.18 mm
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions12
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating0.05 in
Row Spacing - Mating1.27 mm
ShroudingUnshrouded
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.61
10$ 1.41
100$ 1.26
1000$ 0.90
5000$ 0.80
10000$ 0.78
NewarkEach 1$ 1.51
10$ 1.23
100$ 1.00
250$ 0.93
500$ 0.87
1000$ 0.82
2500$ 0.78
5000$ 0.74

Description

General part information

M50-361 Series

Connector Header Surface Mount 12 position 0.050" (1.27mm)
