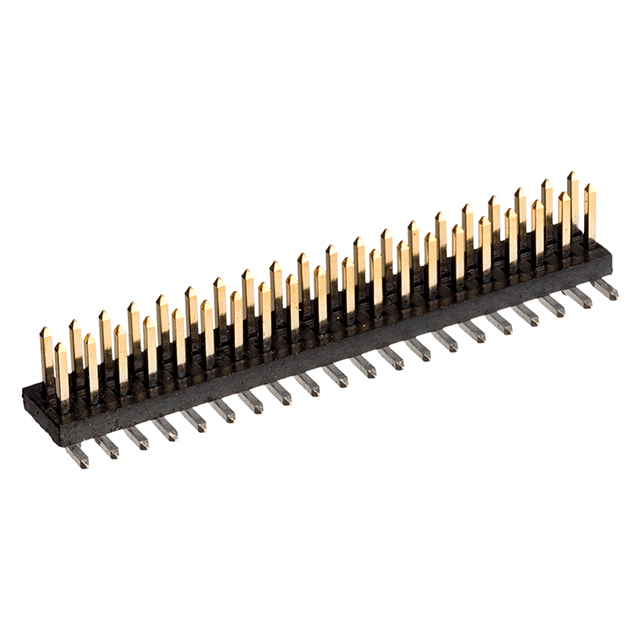

M50-3612042 - Archer M50 Series

M50-3612042

Active
Harwin Inc.

CONNECTOR, HEADER, 40POS, 2ROW, 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetM50-3000345+6
M50-3612042 - Archer M50 Series

M50-3612042

Active
Harwin Inc.

CONNECTOR, HEADER, 40POS, 2ROW, 1.27MM

Deep-Dive with AI

DocumentsDatasheetM50-3000345+6

Technical Specifications

Parameters and characteristics for this part

SpecificationM50-3612042
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating1 µin
Contact Finish Thickness - Mating0.025 µm
Contact Finish Thickness - Post2.03 µm
Contact Finish Thickness - Post80 µin
Contact Length - Mating3 mm
Contact Length - Mating0.118 in
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
FeaturesBoard Guide
Insulation ColorBlack
Insulation Height0.039 "
Insulation Height1 mm
Insulation MaterialThermoplastic
Mated Stacking Heights6.18 mm, 3.9 mm, 5.3 mm, 7 mm, 6.08 mm
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions40
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating0.05 in
Row Spacing - Mating1.27 mm
ShroudingUnshrouded
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.22
10$ 2.93
200$ 2.58
600$ 2.27
NewarkEach 1$ 3.43
10$ 3.08
25$ 2.90
50$ 2.82
100$ 2.79
250$ 2.76

Description

General part information

M50-361 Series

Connector Header Surface Mount 40 position 0.050" (1.27mm)
