EZ-1200-NMC-PL-2

Active

Amphenol Times Microwave Systems

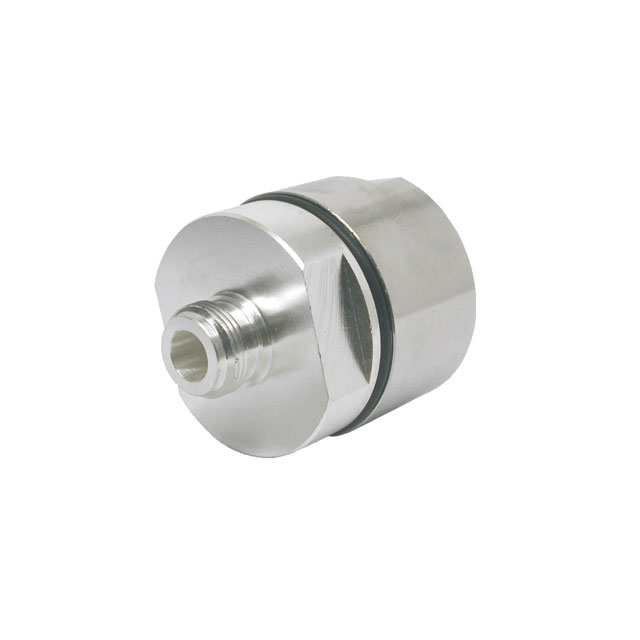

N-MALE (PLUG) CLAMP CONNECTOR F

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EZ-1200-NMC-PL-2

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CLAMP CONNECTOR F

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-1200-NMC-PL-2	EZ-1200 Series

Body Finish	White Bronze	White Bronze, Silver
Body Material	Brass	Brass
Cable Group	LMR-1200	LMR-1200
Center Contact Material	Phosphor Bronze	Beryllium Copper, Phosphor Bronze, Brass
Center Contact Plating	Silver	Gold, Silver
Connector Style	N Type	7/16 DIN, N Type, 7/8 EIA
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Press-Fit	Push On, Press-Fit
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Push-Pull
Frequency - Max [Max]	6000 MHz	2.5 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insertion Loss	-	0.05 dB
Mating Cycles	500	500
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle, Panel Mount
Number of Ports	1	1
Operating Temperature [Max]	85 °C	75 - 155 °C
Operating Temperature [Min]	-55 °C	-55 - -5 °C
Shield Termination	Clamp	Clamp
Voltage Rating	5000 V	1000 - 5000 V

EZ-1200 Series

7/16 DIN MALE CLAMP CONNECTOR, P

Part	Mounting Type	Housing Color	Connector Type	Shield Termination	Dielectric Material	Number of Ports	Contact Termination	Cable Group	Frequency - Max [Max]	Center Contact Material	Body Finish	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Insertion Loss	Ingress Protection	Connector Style	Impedance	Mating Cycles	Voltage Rating	Mounting Feature	Fastening Type
Amphenol Times Microwave Systems EZ-1200-716MC-2	Free Hanging (In-Line)	Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Push On	LMR-1200	3 GHz	Beryllium Copper	White Bronze	Gold	155 °C	-55 °C	Brass	0.05 dB	IP67 - Dust Tight, Waterproof	7/16 DIN	50 Ohms
Amphenol Times Microwave Systems EZ-1200-716FC-2	Free Hanging (In-Line)	Silver	Female Socket, Jack	Clamp	Polytetrafluoroethylene (PTFE)	1	Push On	LMR-1200	3 GHz	Beryllium Copper	White Bronze	Gold	155 °C	-55 °C	Brass	0.05 dB	IP67 - Dust Tight, Waterproof	7/16 DIN	50 Ohms
Amphenol Times Microwave Systems EZ-1200-NFC-2	Free Hanging (In-Line)	Silver	Female Socket, Jack	Clamp		1	Push On	LMR-1200	2.5 GHz		White Bronze		85 °C	-40 °C				N Type	50 Ohms
Amphenol Times Microwave Systems EZ-1200-NMC-PL-2	Free Hanging (In-Line)	Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Press-Fit	LMR-1200	6000 MHz	Phosphor Bronze	White Bronze	Silver	85 °C	-55 °C	Brass			N Type	50 Ohms	500	5000 V
Amphenol Times Microwave Systems EZ-1200-NMC-2	Free Hanging (In-Line)	Silver	Male Pin, Plug	Clamp		1	Push On	LMR-1200	2.5 GHz		White Bronze		85 °C	-40 °C				N Type	50 Ohms
Amphenol Times Microwave Systems EZ-1200-78EIA-RA-2	Panel Mount, Right Angle	Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Push On	LMR-1200	500 MHz	Brass	White Bronze	Silver	85 °C	-40 °C	Brass	0.05 dB	IP67 - Dust Tight, Waterproof	7/8 EIA	50 Ohms	500		Flange	Push-Pull
Amphenol Times Microwave Systems EZ-1200-78EIA-2		Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Push On	LMR-1200	500 MHz	Brass	White Bronze	Silver	155 °C	-55 °C	Brass	0.05 dB	IP67 - Dust Tight, Waterproof	7/8 EIA	50 Ohms			Flange	Push-Pull
Amphenol Times Microwave Systems EZ-1200-NFC-PL-2	Free Hanging (In-Line)	Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Press-Fit	LMR-1200	3 GHz	Brass	Silver	Silver			Brass			N Type	50 Ohms		1000 VDC
Amphenol Times Microwave Systems EZ-1200-NFC-PL	Free Hanging (In-Line)	Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Press-Fit	LMR-1200	3 GHz	Brass	Silver	Silver	75 ░C	-5 °C	Brass			N Type	50 Ohms		1000 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	3	$ 142.72

Description

General part information

EZ-1200 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Press-Fit
