EZ-1200-78EIA-RA-2

Active

Amphenol Times Microwave Systems

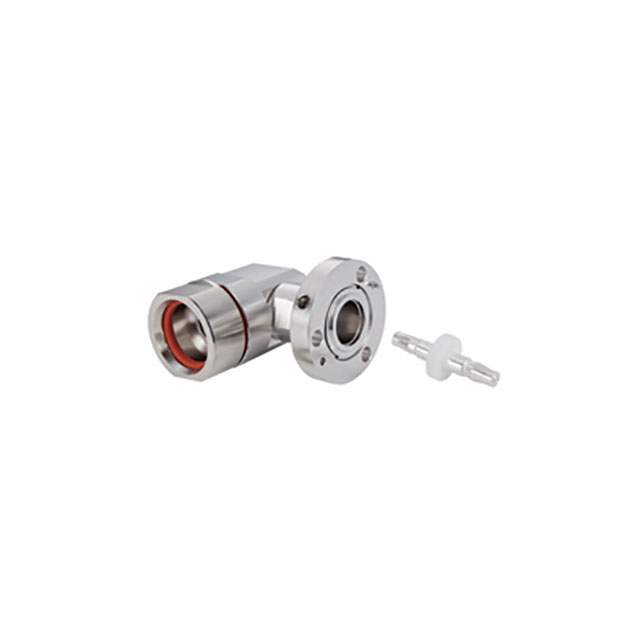

7/8 EIA FLANGE CLAMP RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EZ-1200-78EIA-RA-2

Active

Amphenol Times Microwave Systems

7/8 EIA FLANGE CLAMP RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 344.94

Description

General part information

EZ-1200 Series

7/8 EIA Connector Plug, Male Pin 50 Ohms Panel Mount, Right Angle Push On

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-1200-78EIA-RA-2	EZ-1200 Series

Body Finish	White Bronze	White Bronze, Silver
Body Material	Brass	Brass
Cable Group	LMR-1200	LMR-1200
Center Contact Material	Brass	Beryllium Copper, Phosphor Bronze, Brass
Center Contact Plating	Silver	Gold, Silver
Connector Style	7/8 EIA	7/16 DIN, N Type, 7/8 EIA
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Push On	Push On, Press-Fit
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Frequency - Max [Max]	500 MHz	2.5 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insertion Loss	0.05 dB	0.05 dB
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Mounting Type	Right Angle, Panel Mount	Free Hanging (In-Line), Right Angle, Panel Mount
Number of Ports	1	1
Operating Temperature [Max]	85 °C	75 - 155 °C
Operating Temperature [Min]	-40 °C	-55 - -5 °C
Shield Termination	Clamp	Clamp
Voltage Rating	-	1000 - 5000 V

EZ-1200 Series

7/16 DIN MALE CLAMP CONNECTOR, P

Part	Mounting Type	Housing Color	Connector Type	Shield Termination	Dielectric Material	Number of Ports	Contact Termination	Cable Group	Frequency - Max [Max]	Center Contact Material	Body Finish	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Insertion Loss	Ingress Protection	Connector Style	Impedance	Mating Cycles	Voltage Rating	Mounting Feature	Fastening Type
Amphenol Times Microwave Systems EZ-1200-716MC-2	Free Hanging (In-Line)	Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Push On	LMR-1200	3 GHz	Beryllium Copper	White Bronze	Gold	155 °C	-55 °C	Brass	0.05 dB	IP67 - Dust Tight, Waterproof	7/16 DIN	50 Ohms
Amphenol Times Microwave Systems EZ-1200-716FC-2	Free Hanging (In-Line)	Silver	Female Socket, Jack	Clamp	Polytetrafluoroethylene (PTFE)	1	Push On	LMR-1200	3 GHz	Beryllium Copper	White Bronze	Gold	155 °C	-55 °C	Brass	0.05 dB	IP67 - Dust Tight, Waterproof	7/16 DIN	50 Ohms
Amphenol Times Microwave Systems EZ-1200-NFC-2	Free Hanging (In-Line)	Silver	Female Socket, Jack	Clamp		1	Push On	LMR-1200	2.5 GHz		White Bronze		85 °C	-40 °C				N Type	50 Ohms
Amphenol Times Microwave Systems EZ-1200-NMC-PL-2	Free Hanging (In-Line)	Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Press-Fit	LMR-1200	6000 MHz	Phosphor Bronze	White Bronze	Silver	85 °C	-55 °C	Brass			N Type	50 Ohms	500	5000 V
Amphenol Times Microwave Systems EZ-1200-NMC-2	Free Hanging (In-Line)	Silver	Male Pin, Plug	Clamp		1	Push On	LMR-1200	2.5 GHz		White Bronze		85 °C	-40 °C				N Type	50 Ohms
Amphenol Times Microwave Systems EZ-1200-78EIA-RA-2	Panel Mount, Right Angle	Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Push On	LMR-1200	500 MHz	Brass	White Bronze	Silver	85 °C	-40 °C	Brass	0.05 dB	IP67 - Dust Tight, Waterproof	7/8 EIA	50 Ohms	500		Flange	Push-Pull
Amphenol Times Microwave Systems EZ-1200-78EIA-2		Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Push On	LMR-1200	500 MHz	Brass	White Bronze	Silver	155 °C	-55 °C	Brass	0.05 dB	IP67 - Dust Tight, Waterproof	7/8 EIA	50 Ohms			Flange	Push-Pull
Amphenol Times Microwave Systems EZ-1200-NFC-PL-2	Free Hanging (In-Line)	Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Press-Fit	LMR-1200	3 GHz	Brass	Silver	Silver			Brass			N Type	50 Ohms		1000 VDC
Amphenol Times Microwave Systems EZ-1200-NFC-PL	Free Hanging (In-Line)	Silver	Male Pin, Plug	Clamp	Polytetrafluoroethylene (PTFE)	1	Press-Fit	LMR-1200	3 GHz	Brass	Silver	Silver	75 ░C	-5 °C	Brass			N Type	50 Ohms		1000 VDC
