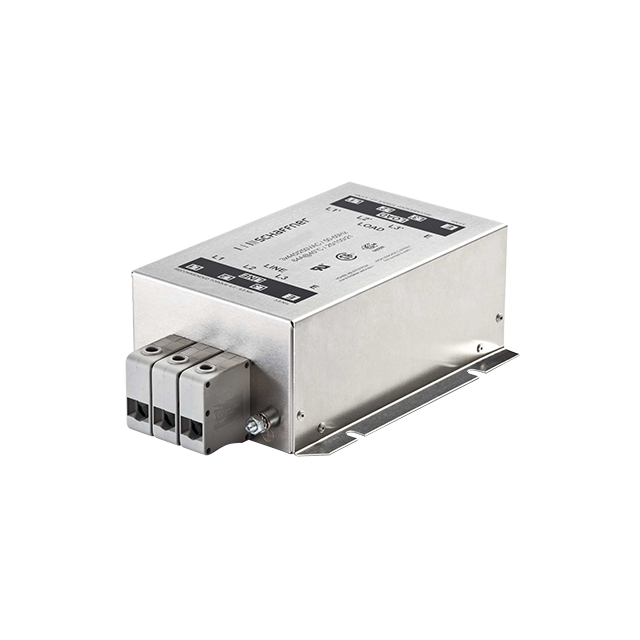

FN351-16-29

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 16A CHASSIS MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN351-16-29

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 16A CHASSIS MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN351-16-29

Applications	Power Drive Systems, Inverters
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	16 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	250 V
Voltage - Rated AC (Phase to Phase)	440 V

FN351 Series

Part	Voltage - Rated AC (Phase to Phase)	Filter Type	Voltage - Rated AC (Phase to Ground/Neutral)	Mounting Type	Operating Temperature [custom]	Current	Approval Agency	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Configuration	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Raychem Cable Protection FN351H-80-34	520 V	Three Phase (Delta)	300 V	Chassis Mount	-25 °C 100 °C	80 A	CSA ENEC UR	60 Hz	DC	Inverters Power Drive Systems	Single Stage	Terminal Block
TE Connectivity Raychem Cable Protection FN351H-8-29	520 V	Three Phase (Delta)	300 V	Chassis Mount	-25 °C 100 °C	8 A	CSA ENEC UR	60 Hz	DC	Inverters Power Drive Systems	Single Stage	Terminal Block
TE Connectivity Raychem Cable Protection FN351-36-33	440 V	Three Phase (Delta)	250 V	Chassis Mount		36 A	CSA ENEC UR	60 Hz	DC	Inverters Power Drive Systems	Single Stage	Terminal Block	-25 °C	85 °C
TE Connectivity Raychem Cable Protection FN351-64-33	440 V	Three Phase (Delta)	250 V	Chassis Mount		64 A	CSA ENEC UR	60 Hz	DC	Inverters Power Drive Systems	Single Stage	Terminal Block	-25 °C	85 °C
TE Connectivity Raychem Cable Protection FN351H-36-33	520 V	Three Phase (Delta)	300 V	Chassis Mount	-25 °C 100 °C	36 A	CSA ENEC UR	60 Hz	DC	Inverters Power Drive Systems	Single Stage	Terminal Block
TE Connectivity Raychem Cable Protection FN351H-64-33	520 V	Three Phase (Delta)	300 V	Chassis Mount	-25 °C 100 °C	64 A	CSA ENEC UR	60 Hz	DC	Inverters Power Drive Systems	Single Stage	Terminal Block
TE Connectivity Raychem Cable Protection FN351H-110-35	520 V	Three Phase (Delta)	300 V	Chassis Mount	-25 °C 100 °C	110 A	CSA ENEC UR	60 Hz	DC	Inverters Power Drive Systems	Single Stage	Terminal Block
TE Connectivity Raychem Cable Protection FN351-16-29	440 V	Three Phase (Delta)	250 V	Chassis Mount		16 A	CSA ENEC UR	60 Hz	DC	Inverters Power Drive Systems	Single Stage	Terminal Block	-25 °C	85 °C
TE Connectivity Raychem Cable Protection FN351-16-29	440 V	Three Phase (Delta)	250 V	Chassis Mount		16 A	CSA ENEC UR	60 Hz	DC	Inverters Power Drive Systems	Single Stage	Terminal Block	-25 °C	85 °C
TE Connectivity Raychem Cable Protection FN351-50-33	440 V	Three Phase (Delta)	250 V	Chassis Mount		50 A	CSA ENEC UR	60 Hz	DC	Inverters Power Drive Systems	Single Stage	Terminal Block	-25 °C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 244.93
		1	$ 244.93

Description

General part information

FN351 Series

Three Phase (Delta) EMC/EMI Line Filter 16 A DC ~ 60Hz Single Stage Terminal Block
