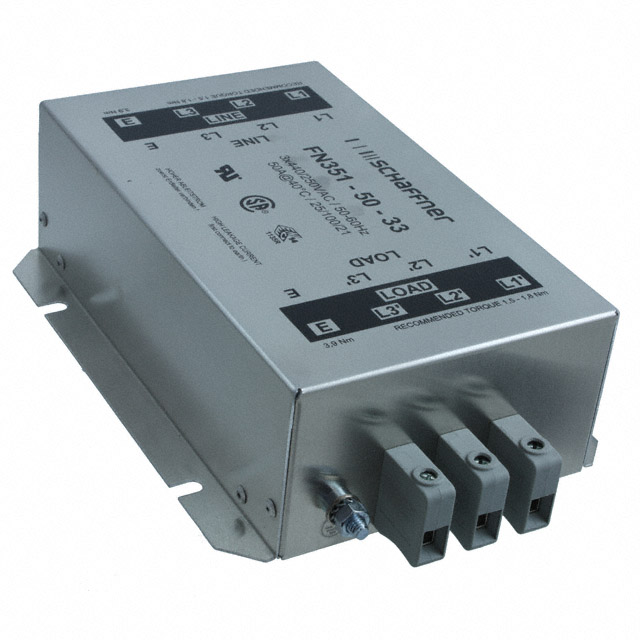

FN351-50-33
ObsoleteTE Connectivity Raychem Cable Protection
LINE FILTER 50A CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN351-50-33
ObsoleteTE Connectivity Raychem Cable Protection
LINE FILTER 50A CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN351-50-33 |
|---|---|
| Applications | Power Drive Systems, Inverters |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Single Stage |
| Current | 50 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 250 V |
| Voltage - Rated AC (Phase to Phase) | 440 V |
FN351 Series
| Part | Voltage - Rated AC (Phase to Phase) | Filter Type | Voltage - Rated AC (Phase to Ground/Neutral) | Mounting Type | Operating Temperature [custom] | Current | Approval Agency | Frequency - Operating [Max] | Frequency - Operating [Min] | Applications | Configuration | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 520 V | Three Phase (Delta) | 300 V | Chassis Mount | -25 °C 100 °C | 80 A | CSA ENEC UR | 60 Hz | DC | Inverters Power Drive Systems | Single Stage | Terminal Block | ||
TE Connectivity Raychem Cable Protection | 520 V | Three Phase (Delta) | 300 V | Chassis Mount | -25 °C 100 °C | 8 A | CSA ENEC UR | 60 Hz | DC | Inverters Power Drive Systems | Single Stage | Terminal Block | ||
TE Connectivity Raychem Cable Protection | 440 V | Three Phase (Delta) | 250 V | Chassis Mount | 36 A | CSA ENEC UR | 60 Hz | DC | Inverters Power Drive Systems | Single Stage | Terminal Block | -25 °C | 85 °C | |
TE Connectivity Raychem Cable Protection | 440 V | Three Phase (Delta) | 250 V | Chassis Mount | 64 A | CSA ENEC UR | 60 Hz | DC | Inverters Power Drive Systems | Single Stage | Terminal Block | -25 °C | 85 °C | |
TE Connectivity Raychem Cable Protection | 520 V | Three Phase (Delta) | 300 V | Chassis Mount | -25 °C 100 °C | 36 A | CSA ENEC UR | 60 Hz | DC | Inverters Power Drive Systems | Single Stage | Terminal Block | ||
TE Connectivity Raychem Cable Protection | 520 V | Three Phase (Delta) | 300 V | Chassis Mount | -25 °C 100 °C | 64 A | CSA ENEC UR | 60 Hz | DC | Inverters Power Drive Systems | Single Stage | Terminal Block | ||
TE Connectivity Raychem Cable Protection | 520 V | Three Phase (Delta) | 300 V | Chassis Mount | -25 °C 100 °C | 110 A | CSA ENEC UR | 60 Hz | DC | Inverters Power Drive Systems | Single Stage | Terminal Block | ||
TE Connectivity Raychem Cable Protection | 440 V | Three Phase (Delta) | 250 V | Chassis Mount | 16 A | CSA ENEC UR | 60 Hz | DC | Inverters Power Drive Systems | Single Stage | Terminal Block | -25 °C | 85 °C | |
TE Connectivity Raychem Cable Protection | 440 V | Three Phase (Delta) | 250 V | Chassis Mount | 16 A | CSA ENEC UR | 60 Hz | DC | Inverters Power Drive Systems | Single Stage | Terminal Block | -25 °C | 85 °C | |
TE Connectivity Raychem Cable Protection | 440 V | Three Phase (Delta) | 250 V | Chassis Mount | 50 A | CSA ENEC UR | 60 Hz | DC | Inverters Power Drive Systems | Single Stage | Terminal Block | -25 °C | 85 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FN351 Series
Three Phase (Delta) EMC/EMI Line Filter 50 A DC ~ 60Hz Single Stage Terminal Block
