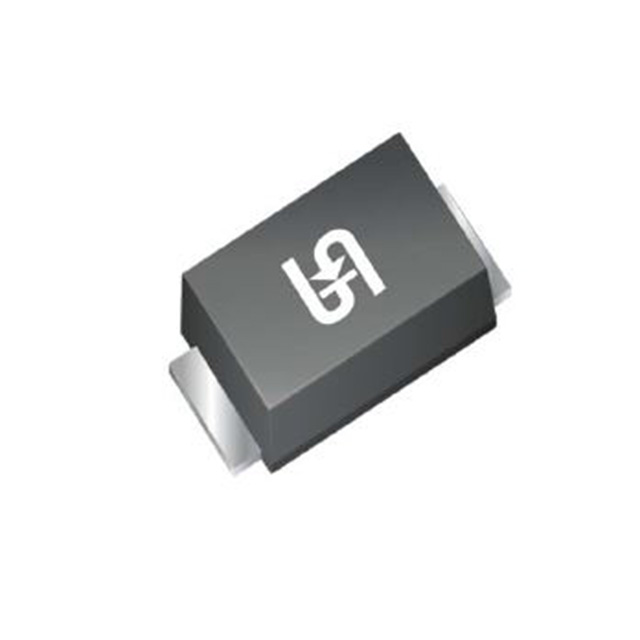

SS24L RVG

Active

Taiwan Semiconductor Corporation

DIODE SCHOTTKY 40V 2A SUB SMA

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE SCHOTTKY 40V 2A SUB SMA

Technical Specifications

Parameters and characteristics for this part

Specification	SS24L RVG

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	400 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-219AB
Speed	200 mA, 500 ns
Supplier Device Package	Sub SMA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	500 mV

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Technology	Package / Case	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Mounting Type	Supplier Device Package	Grade	Qualification
Taiwan Semiconductor Corporation SS24M	600 mV	150 °C	-55 °C	Micro SMA	Schottky	2-SMD Flat Leads	35 pF	150 µA	200 mA 500 ns	40 V	2 A	Surface Mount
Taiwan Semiconductor Corporation SS24 R5G	500 mV	125 °C	-55 °C	DO-214AA	Schottky	DO-214AA SMB		400 µA	200 mA 500 ns	40 V	2 A	Surface Mount	SMB
Taiwan Semiconductor Corporation SS24H	500 mV	125 °C	-55 °C	DO-214AA	Schottky	DO-214AA SMB		400 µA	200 mA 500 ns	40 V	2 A	Surface Mount	SMB	Automotive	AEC-Q101
Taiwan Semiconductor Corporation SS24LWH	550 mV	125 °C	-55 °C	SOD-123W	Schottky	SOD-123W		200 µA	200 mA 500 ns	40 V	2 A	Surface Mount
Taiwan Semiconductor Corporation SS24LHR3G	500 mV	150 °C	-55 °C	Sub SMA	Schottky	DO-219AB		400 µA	200 mA 500 ns	40 V	2 A	Surface Mount		Automotive	AEC-Q101
Taiwan Semiconductor Corporation SS24L RVG	500 mV	125 °C	-55 °C	Sub SMA	Schottky	DO-219AB		400 µA	200 mA 500 ns	40 V	2 A	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 2A Surface Mount Sub SMA
