SS24M

Active

Taiwan Semiconductor Corporation

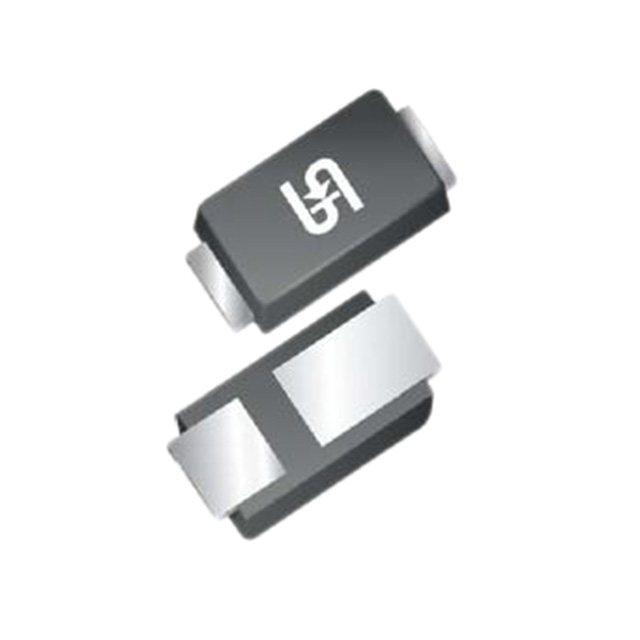

DIODE SCHOTTKY 40V 2A 2-PIN MICRO SMA T/R

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE SCHOTTKY 40V 2A 2-PIN MICRO SMA T/R

Technical Specifications

Parameters and characteristics for this part

Specification	SS24M

Capacitance @ Vr, F	35 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	150 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	2-SMD, Flat Leads
Speed	200 mA, 500 ns
Supplier Device Package	Micro SMA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	600 mV

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Technology	Package / Case	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Mounting Type	Supplier Device Package	Grade	Qualification
Taiwan Semiconductor Corporation SS24M	600 mV	150 °C	-55 °C	Micro SMA	Schottky	2-SMD Flat Leads	35 pF	150 µA	200 mA 500 ns	40 V	2 A	Surface Mount
Taiwan Semiconductor Corporation SS24 R5G	500 mV	125 °C	-55 °C	DO-214AA	Schottky	DO-214AA SMB		400 µA	200 mA 500 ns	40 V	2 A	Surface Mount	SMB
Taiwan Semiconductor Corporation SS24H	500 mV	125 °C	-55 °C	DO-214AA	Schottky	DO-214AA SMB		400 µA	200 mA 500 ns	40 V	2 A	Surface Mount	SMB	Automotive	AEC-Q101
Taiwan Semiconductor Corporation SS24LWH	550 mV	125 °C	-55 °C	SOD-123W	Schottky	SOD-123W		200 µA	200 mA 500 ns	40 V	2 A	Surface Mount
Taiwan Semiconductor Corporation SS24LHR3G	500 mV	150 °C	-55 °C	Sub SMA	Schottky	DO-219AB		400 µA	200 mA 500 ns	40 V	2 A	Surface Mount		Automotive	AEC-Q101
Taiwan Semiconductor Corporation SS24L RVG	500 mV	125 °C	-55 °C	Sub SMA	Schottky	DO-219AB		400 µA	200 mA 500 ns	40 V	2 A	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 2A Surface Mount Micro SMA
