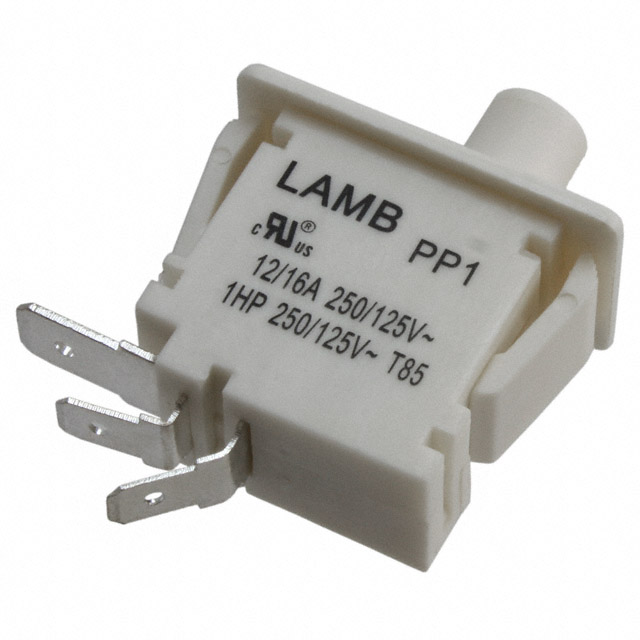

PP1-FB7-2D2
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 12A/250VAC; WHITE; ILLUMIN: NONE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPP1 Series Spec
PP1-FB7-2D2
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 12A/250VAC; WHITE; ILLUMIN: NONE
Deep-Dive with AI
DocumentsPP1 Series Spec
Technical Specifications
Parameters and characteristics for this part
| Specification | PP1-FB7-2D2 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Features | White Actuator |
| Mounting Type | Panel Mount, Snap-In |
| Operating Force | 0.5 kgf |
| Operating Position | 0.362 " |
| Operating Position | 9.2 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.19 | |
| 10 | $ 4.21 | |||
| 25 | $ 3.87 | |||
| 100 | $ 3.39 | |||
| 250 | $ 3.11 | |||
| 500 | $ 2.91 | |||
| 1000 | $ 2.72 | |||
| 3000 | $ 2.43 | |||
Description
General part information
PP1-FB7 Series
Switch SPDT Panel Mount, Snap-In
