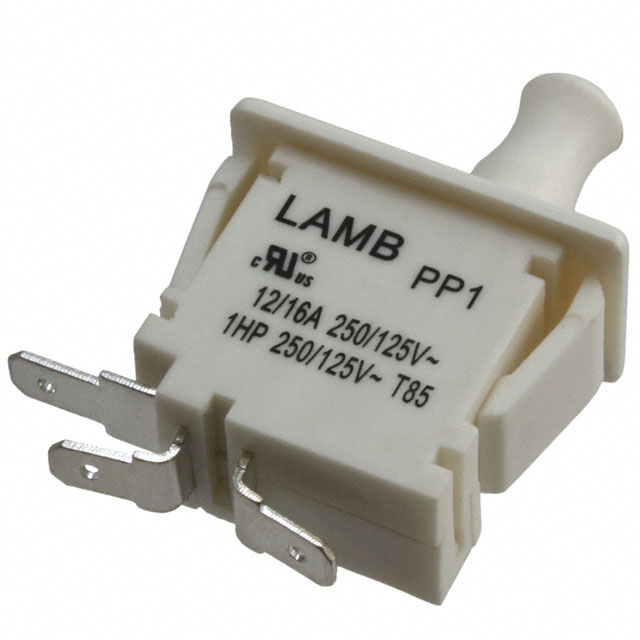

PP1-ET7-2B2
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 12A/250VAC; WHITE; ILLUMIN: NONE
Deep-Dive with AI
Search across all available documentation for this part.
PP1-ET7-2B2
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 12A/250VAC; WHITE; ILLUMIN: NONE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PP1-ET7-2B2 |
|---|---|
| Actuator Type | Push-Pull Plunger |
| Circuit | SPDT |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Features | Pull On Lock |
| Mounting Type | Panel Mount, Snap-In |
| Operating Force | 300 gf |
| Operating Position | 0.654 in |
| Operating Position | 16.6 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.14 | |
| 10 | $ 4.17 | |||
| 25 | $ 3.83 | |||
| 100 | $ 3.36 | |||
| 250 | $ 3.08 | |||
| 500 | $ 2.88 | |||
| 1000 | $ 2.69 | |||
| 3000 | $ 2.41 | |||
Description
General part information
PP1-FB7 Series
Switch SPDT Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
