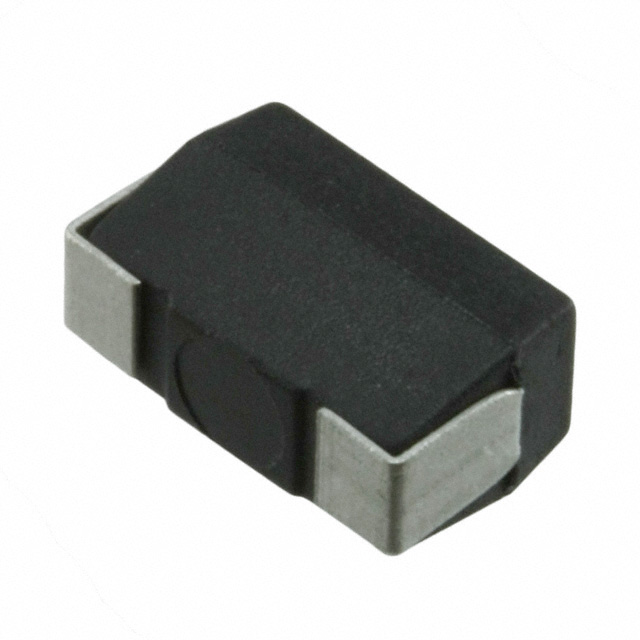

PWR3014WA1R50JE

Active

Bourns Inc.

SMD CHIP RESISTOR, 1.5 OHM, ± 5%, 1 W, SMD, WIREWOUND, HIGH POWER

Search across all available documentation for this part.

Active

Bourns Inc.

SMD CHIP RESISTOR, 1.5 OHM, ± 5%, 1 W, SMD, WIREWOUND, HIGH POWER

Technical Specifications

Parameters and characteristics for this part

Specification	PWR3014WA1R50JE

Composition	Wirewound
Features	Current Sense, Pulse Withstanding
Height - Seated (Max) [Max] [z]	5.15 mm
Height - Seated (Max) [Max] [z]	0.203 "
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	3014 J-Lead
Power (Watts)	1 W
Size / Dimension [x]	0.295 ", 7.5 mm
Size / Dimension [y]	0.138 in, 3.5 mm
Supplier Device Package	3014
Temperature Coefficient	50 ppm/°C
Tolerance	5 %

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Temperature Coefficient	Package / Case	Features	Number of Terminations	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Composition	Power (Watts)	Supplier Device Package	Resistance
Bourns Inc. PWR3014WA1R50JE	155 °C	-55 °C	5 %	50 ppm/°C	3014 J-Lead	Current Sense Pulse Withstanding	2	5.15 mm	0.203 "	0.138 in 3.5 mm	0.295 " 7.5 mm	Wirewound	1 W	3014
Bourns Inc. PWR3014WA2R20JE	155 °C	-55 °C	5 %	50 ppm/°C	3014 J-Lead	Current Sense Pulse Withstanding	2	5.15 mm	0.203 "	0.138 in 3.5 mm	0.295 " 7.5 mm	Wirewound	1 W	3014	2.2 Ohms
Bourns Inc. PWR3014W20R0JE	155 °C	-55 °C	5 %	20 ppm/°C	3014 J-Lead	Current Sense Pulse Withstanding	2	5.15 mm	0.203 "	0.138 in 3.5 mm	0.295 " 7.5 mm	Wirewound	1 W	3014	20 Ohms
Bourns Inc. PWR3014W5R00JE	155 °C	-55 °C	5 %	50 ppm/°C	3014 J-Lead	Current Sense Pulse Withstanding	2	5.15 mm	0.203 "	0.138 in 3.5 mm	0.295 " 7.5 mm	Wirewound	1 W	3014	5 Ohms
Bourns Inc. PWR3014W24R0JE	155 °C	-55 °C	5 %	20 ppm/°C	3014 J-Lead	Current Sense Pulse Withstanding	2	5.15 mm	0.203 "	0.138 in 3.5 mm	0.295 " 7.5 mm	Wirewound	1 W	3014	24 Ohms
Bourns Inc. PWR3014W47R0FE	155 °C	-55 °C	1 %	20 ppm/°C	3014 J-Lead	Current Sense Pulse Withstanding	2	5.15 mm	0.203 "	0.138 in 3.5 mm	0.295 " 7.5 mm	Wirewound	1 W	3014	47 Ohms
Bourns Inc. PWR3014W2R00JE	155 °C	-55 °C	5 %	50 ppm/°C	3014 J-Lead	Current Sense Pulse Withstanding	2	5.15 mm	0.203 "	0.138 in 3.5 mm	0.295 " 7.5 mm	Wirewound	1 W	3014	2 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10500	$ 0.43
Newark	Each	1	$ 0.65

General part information

1.5 Ohms ±5% 1W Chip Resistor 3014 J-Lead Current Sense, Pulse Withstanding Wirewound
