Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24315EVM | BQ24315 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Contents | Board(s) | Board(s) |
| Fault Protection | - | Over/Under Voltage, Over Temperature, Over Current |
| Function | Battery Charger | Battery Protection, Battery Charger |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 ¯C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 8-WFDFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-WSON (2x2) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24315 | BQ24315 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ24315 Series
Overvoltage & Overcurrent Protection IC & Li+ Charger Front-End Protection IC

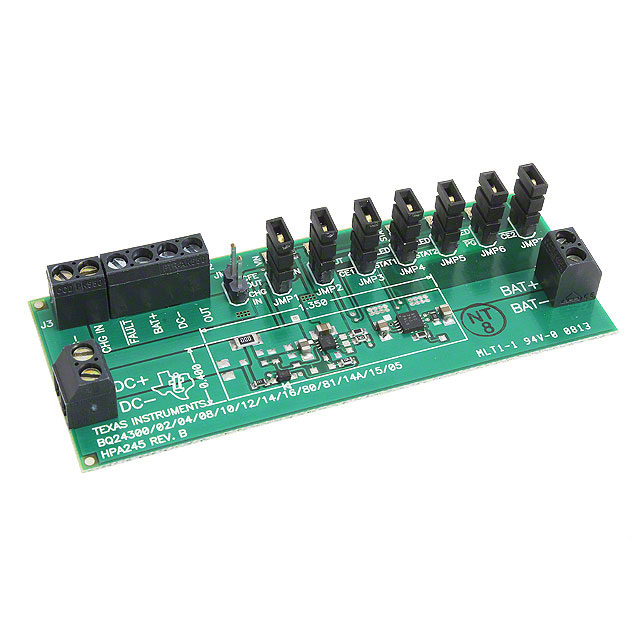

| Part | Mounting Type | Fault Protection | Supplier Device Package | Function | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Battery Chemistry | Supplied Contents | Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24315DSGR | Surface Mount | Over Current, Over Temperature, Over/Under Voltage | 8-WSON (2x2) | Battery Protection | 8-WFDFN Exposed Pad | 125 ¯C | -40 °C | Lithium Ion | ||||
Texas Instruments BQ24315DSGT | Surface Mount | Over Current, Over Temperature, Over/Under Voltage | 8-WSON (2x2) | Battery Protection | 8-WFDFN Exposed Pad | 125 ¯C | -40 °C | Lithium Ion | ||||
Texas Instruments BQ24315EVM | Battery Charger | Board(s) | Power Management | Board(s) | BQ24315 |
Description
General part information
BQ24315 Series
The bq24313 and bq24315 are highly integrated circuits designed to provide protection to Li-ion batteries from failures of the charging circuit. The IC continuously monitors the input voltage, the input current, and the battery voltage. The output acts as a linear regulator. The output is regulated to VO(REG)for inputs between VO(REG)and the overvoltage threshold. If an input overvoltage condition occurs, the IC immediately removes power from the charging circuit by turning off an internal switch. In the case of an overcurrent condition, it limits the system current at the threshold value, and if the overcurrent persists, switches the pass element OFF after a blanking period. Additionally, the IC also monitors its own die temperature and switches off if it exceeds 140°C. The input overcurrent threshold is user-programmable.
The IC can be controlled by a processor and also provides status information about fault conditions to the host.
The bq24313 and bq24315 are highly integrated circuits designed to provide protection to Li-ion batteries from failures of the charging circuit. The IC continuously monitors the input voltage, the input current, and the battery voltage. The output acts as a linear regulator. The output is regulated to VO(REG)for inputs between VO(REG)and the overvoltage threshold. If an input overvoltage condition occurs, the IC immediately removes power from the charging circuit by turning off an internal switch. In the case of an overcurrent condition, it limits the system current at the threshold value, and if the overcurrent persists, switches the pass element OFF after a blanking period. Additionally, the IC also monitors its own die temperature and switches off if it exceeds 140°C. The input overcurrent threshold is user-programmable.
