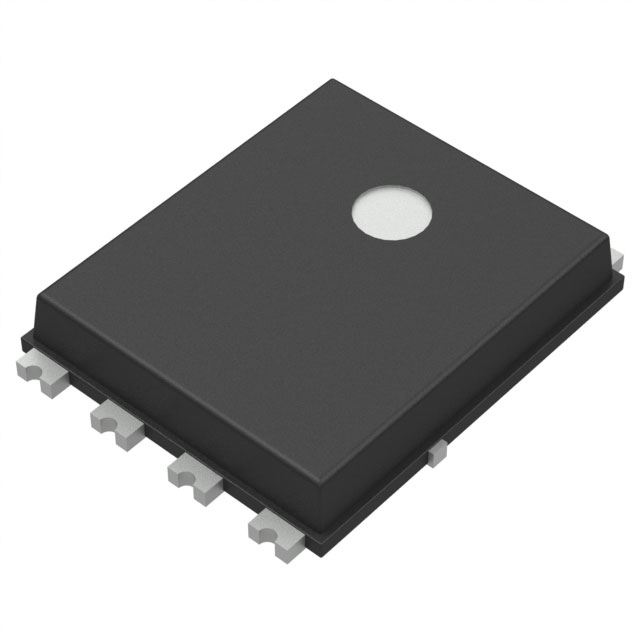

TQM300NB06DCR RLG

Active

Taiwan Semiconductor Corporation

MOSFET, DUAL, N-CH, 60V, 25A, PDFN56U ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

MOSFET, DUAL, N-CH, 60V, 25A, PDFN56U ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TQM300NB06DCR RLG

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	25 A, 6 A
Drain to Source Voltage (Vdss)	60 V
Gate Charge (Qg) (Max) @ Vgs	20 nC
Grade	Automotive
Mounting Type	Wettable Flank, Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power - Max	48 W, 2.5 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	30 mOhm
Supplier Device Package	8-PDFNU (5x6)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	3.8 V

Part	Gate Charge (Qg) (Max) @ Vgs [x]	Drain to Source Voltage (Vdss)	FET Type	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Package / Case	Rds On (Max) @ Id, Vgs	Grade	Mounting Type	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs(th) (Max) @ Id	Technology	Configuration	Gate Charge (Qg) (Max) @ Vgs	Power - Max
Taiwan Semiconductor Corporation TQM300NB06CR RLG	20 nC	60 V	N-Channel	20 V	-55 °C	175 ░C	AEC-Q101	6 A 27 A	8-PDFNU (5x6)	8-PowerTDFN	30 mOhm	Automotive	Surface Mount Wettable Flank	3.1 W 56 W	1009 pF	3.8 V	MOSFET (Metal Oxide)
Taiwan Semiconductor Corporation TQM300NB06DCR RLG		60 V			-55 °C	175 ░C	AEC-Q101	6 A 25 A	8-PDFNU (5x6)	8-PowerTDFN	30 mOhm	Automotive	Surface Mount Wettable Flank			3.8 V	MOSFET (Metal Oxide)	2 N-Channel (Dual)	20 nC	2.5 W 48 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 60V 6A (Ta), 25A (Tc) 2.5W (Ta), 48W (Tc) Surface Mount, Wettable Flank 8-PDFNU (5x6)
