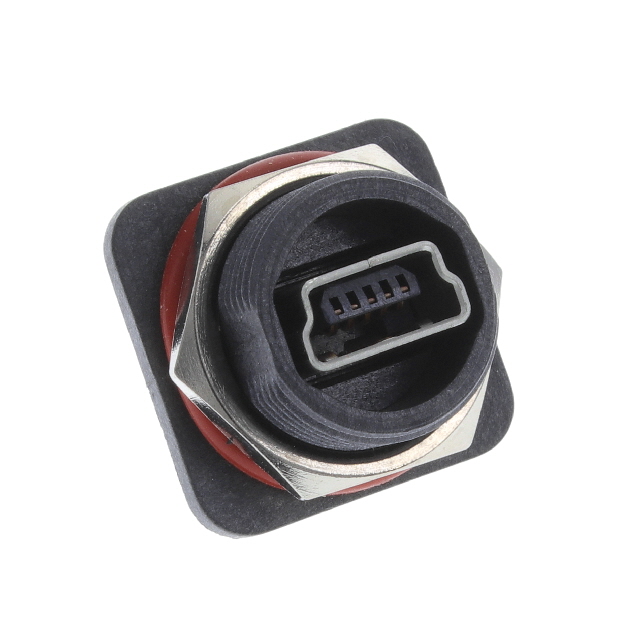

SPM-05-S-B-VT2-PF - SPM-05-S-B-VT2-PF

SPM-05-S-B-VT2-PF

Active
Samtec Inc.

USB CONNECTORS IP68 SEALED MINI USB PORT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetSPM Datasheet+2
SPM-05-S-B-VT2-PF - SPM-05-S-B-VT2-PF

SPM-05-S-B-VT2-PF

Active
Samtec Inc.

USB CONNECTORS IP68 SEALED MINI USB PORT

Deep-Dive with AI

DocumentsDatasheetSPM Datasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSPM-05-S-B-VT2-PF
Connector TypeUSB - mini B
Contact FinishGold
Current Rating (Amps)1.9 A
FeaturesCircular Threaded Coupling
GenderReceptacle
Ingress ProtectionIP68 - Dust Tight, Waterproof
Insulation ColorBlack
Mating Cycles1000
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeThrough Hole, Panel Mount
Number of Contacts5
Number of Ports1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell/Shielding MaterialPhosphor Bronze
ShieldingShielded
TerminationSolder
Voltage - Rated190 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 8.52
10$ 6.53
25$ 5.90
50$ 5.47
100$ 5.08
250$ 4.62
500$ 4.31
1000$ 4.02
2500$ 3.74
SagerN/A 1$ 4.88
25$ 4.41
50$ 4.10
100$ 3.90
500$ 3.24
1000$ 3.02
2500$ 2.57
5000$ 2.00

Description

General part information

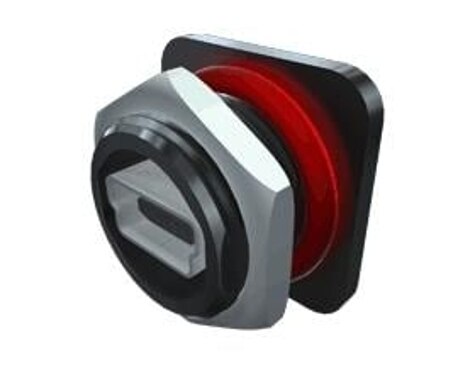

SPM-05 Series

USB Connectors IP68 Sealed Mini USB Port
