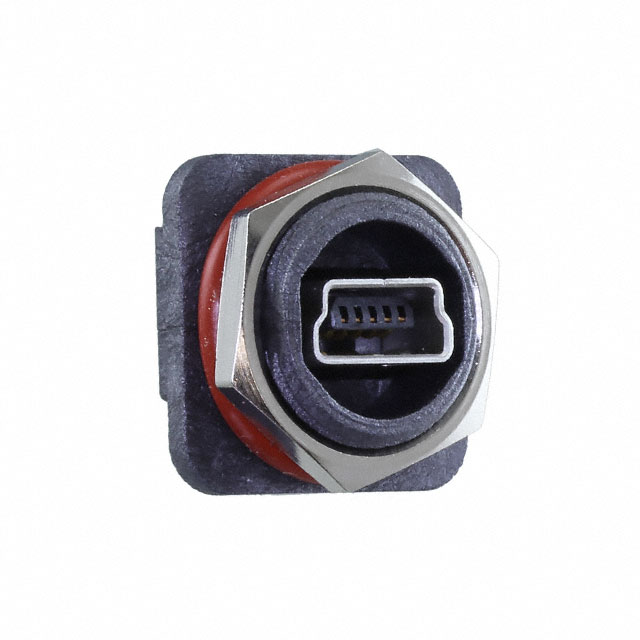

SPM-05-S-B-RA-PF
ActiveSamtec Inc.
CONN RCPT MINI USB B 5POS PCB RA
Deep-Dive with AI
Search across all available documentation for this part.
SPM-05-S-B-RA-PF
ActiveSamtec Inc.
CONN RCPT MINI USB B 5POS PCB RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM-05-S-B-RA-PF |
|---|---|
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.9 A |
| Features | Board Lock, Circular Threaded Coupling |
| Gender | Receptacle |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Mating Cycles | 1000 |
| Mounting Feature | Flange, Horizontal |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Phosphor Bronze |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 190 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.18 | |
| 10 | $ 2.70 | |||
| 25 | $ 2.53 | |||
| 50 | $ 2.41 | |||
| 100 | $ 2.30 | |||
| 250 | $ 2.15 | |||
| 500 | $ 2.05 | |||
| 1000 | $ 2.00 | |||
Description
General part information
SPM-05 Series
USB Connectors IP68 Sealed Mini USB Port
