PI6CB332001ZXBIEX-13R

Active

Diodes Inc

20-OUTPUT PCIE GEN 4/GEN 5/GEN 6 CLOCK BUFFER WITH ON-CHIP TERMINATION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

PI6CB332001ZXBIEX-13R

Active

Diodes Inc

20-OUTPUT PCIE GEN 4/GEN 5/GEN 6 CLOCK BUFFER WITH ON-CHIP TERMINATION

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PI6CB332001ZXBIEX-13R

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Frequency - Max [Max]	400 MHz
Input	HCSL, CMOS
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	HCSL

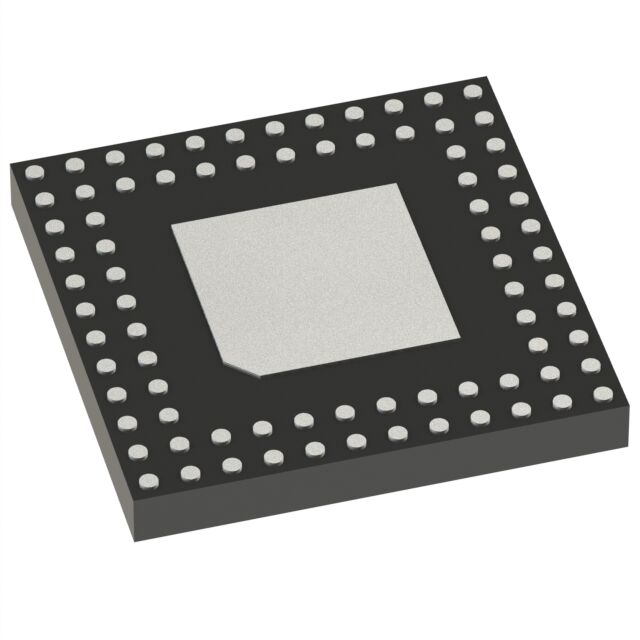

Package / Case	80-VFQFN Dual Rows, Exposed Pad
Ratio - Input:Output [custom]	1:20
Supplier Device Package	80-aQFN (6x6)
Type	Clock Buffer
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	3.135 V

PI6CB332001 Series

20-Output PCIe Gen 4/Gen 5/Gen 6 Clock Buffer With On-Chip Termination

Part	Output	Supplier Device Package	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Input	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Frequency - Max [Max]	Ratio - Input:Output [custom]	Number of Circuits	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type
Diodes Inc PI6CB332001ZXBIEX-13R	HCSL	80-aQFN (6x6)			CMOS HCSL	80-VFQFN Dual Rows Exposed Pad	85 °C	-40 °C	Clock Buffer	400 MHz	1:20	1	3.465 V	3.135 V	Surface Mount
Diodes Inc PI6CB332001ZXBIEX	HCSL	80-aQFN (6x6)			CMOS HCSL	80-VFQFN Dual Rows Exposed Pad	85 °C	-40 °C	Clock Buffer	400 MHz	1:20	1	3.465 V	3.135 V	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.90
		10	$ 3.73
		25	$ 3.44
		100	$ 3.11
		250	$ 2.96
		500	$ 2.87
		1000	$ 2.79
	Digi-Reel®	1	$ 4.90
		10	$ 3.73
		25	$ 3.44
		100	$ 3.11
		250	$ 2.96
		500	$ 2.87
		1000	$ 2.79
	Tape & Reel (TR)	3000	$ 2.70

Description

General part information

PI6CB332001 Series

The PI6CB332001 is a 20-output very low power PCIe® Gen 1/Gen 2/Gen 3/Gen 4/Gen 5 and Gen 6 clock buffer. It is capable of distributing the reference clocks for UPI, SAS, SATA, and other applications as well. It takes a reference input to fanout twenty 100MHz low power differential HCSL outputs with on-chip terminations. The on-chip termination can save 80 external resistors and make layout easier. OE pins combined with SMBus bits as well as 3-wire side band interface provide easier power management for each output.
