116-83-324-41-012101

Active

PRECI-DIP SA

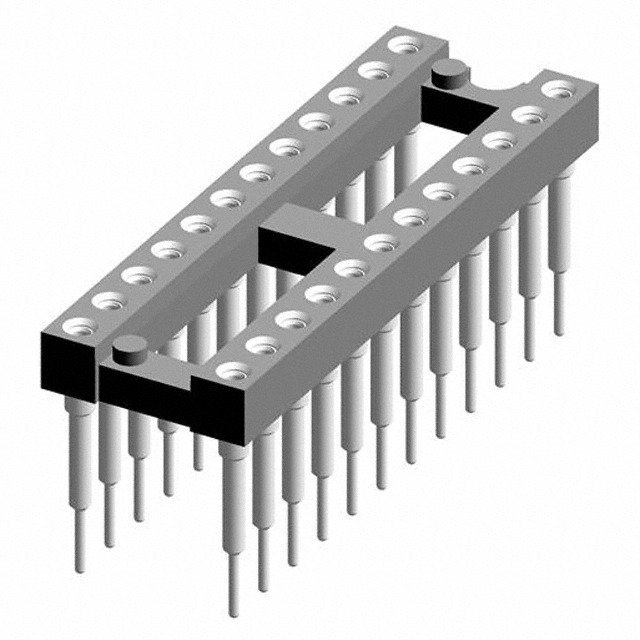

CONN IC DIP SOCKET 24POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

116-83-324-41-012101

Active

PRECI-DIP SA

CONN IC DIP SOCKET 24POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	116-83-324-41-012101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame, Elevated
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	24
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

116-83 Series

...

Part	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Termination Post Length	Termination Post Length	Contact Material - Mating	Housing Material	Contact Resistance	Number of Positions or Pins (Grid)	Pitch - Post	Pitch - Post	Contact Material - Post [custom]	Termination	Contact Finish - Post	Type	Type	Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 116-83-328-41-003101	Through Hole	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm	28	2.54 mm	0.1 in	Brass	Solder	Tin	0.3 "	7.62 mm	DIP	Gold	-55 °C	125 °C	1 A	Elevated Open Frame
PRECI-DIP SA 116-83-304-41-003101	Through Hole	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm		2.54 mm	0.1 in	Brass	Solder	Tin	0.3 "	7.62 mm	DIP	Gold	-55 °C	125 °C	1 A	Elevated Open Frame	4
PRECI-DIP SA 116-83-420-41-006101	Through Hole	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm	20	2.54 mm	0.1 in	Brass	Solder	Tin	0.4 in	10.16 mm	DIP	Gold	-55 °C	125 °C	1 A	Elevated Open Frame
PRECI-DIP SA 116-83-308-41-011101	Through Hole	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm	8	2.54 mm	0.1 in	Brass	Solder	Tin	0.3 "	7.62 mm	DIP	Gold	-55 °C	125 °C	1 A	Elevated Open Frame
PRECI-DIP SA 116-83-322-41-008101	Through Hole	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm	22	2.54 mm	0.1 in	Brass	Solder	Tin	0.3 "	7.62 mm	DIP	Gold	-55 °C	125 °C	1 A	Elevated Open Frame
PRECI-DIP SA 116-83-640-41-006101	Through Hole	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm	40	2.54 mm	0.1 in	Brass	Solder	Tin	0.6 in	15.24 mm	DIP	Gold	-55 °C	125 °C	1 A	Elevated Open Frame		20	2
PRECI-DIP SA 116-83-420-41-007101	Through Hole	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm	20	2.54 mm	0.1 in	Brass	Solder	Tin	0.4 in	10.16 mm	DIP	Gold	-55 °C	125 °C	1 A	Elevated Open Frame
PRECI-DIP SA 116-83-632-41-008101	Through Hole	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm		2.54 mm	0.1 in	Brass	Solder	Tin	0.6 in	15.24 mm	DIP	Gold	-55 °C	125 °C	1 A	Elevated Open Frame				2 x 16	32
PRECI-DIP SA 116-83-636-41-011101	Through Hole	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm	36	2.54 mm	0.1 in	Brass	Solder	Tin	0.6 in	15.24 mm	DIP	Gold	-55 °C	125 °C	1 A	Elevated Open Frame
PRECI-DIP SA 116-83-304-41-011101	Through Hole	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mOhm		2.54 mm	0.1 in	Brass	Solder	Tin	0.3 "	7.62 mm	DIP	Gold	-55 °C	125 °C	1 A	Elevated Open Frame	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1428	$ 2.62

Description

General part information

116-83 Series

24 (2 x 12) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
