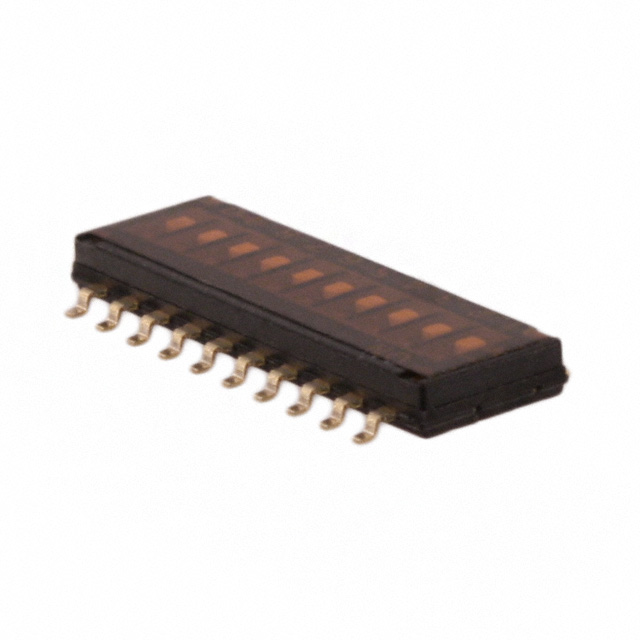

KAN1110RT
ActiveE-Switch
SWITCH: DIP-SWITCH; POLES NUMBER: 10; OFF-ON; 0.1A/50VDC; POS: 2
Deep-Dive with AI
Search across all available documentation for this part.
KAN1110RT
ActiveE-Switch
SWITCH: DIP-SWITCH; POLES NUMBER: 10; OFF-ON; 0.1A/50VDC; POS: 2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KAN1110RT |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Features | Tape Seal |
| Height Above Board | 1.6 mm |
| Height Above Board [z] | 0.063 in |
| Length [x] | 0.541 in |
| Length [x] | 13.74 mm |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.94 | |
| 10 | $ 3.29 | |||
| 33 | $ 2.98 | |||
| 132 | $ 2.66 | |||
| 264 | $ 2.52 | |||
| 528 | $ 2.39 | |||
| 1023 | $ 2.28 | |||
| 2508 | $ 2.25 | |||
Description
General part information
KAN1110 Series
Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Documents
Technical documentation and resources
No documents available
