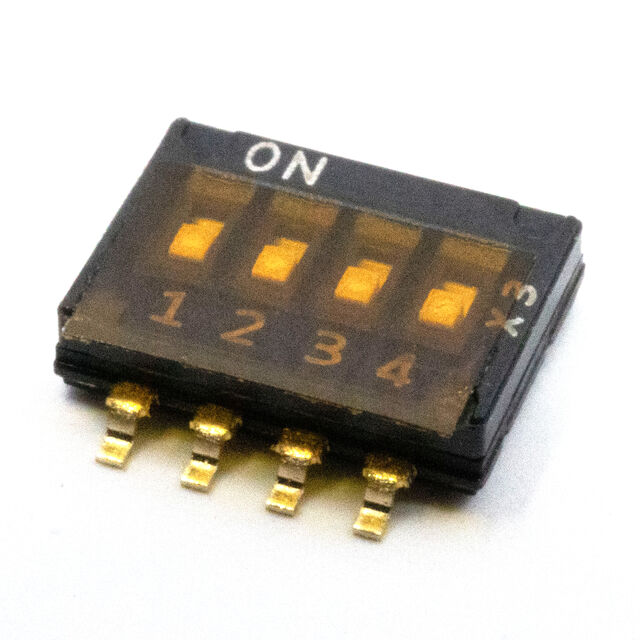

KAN1104RR-TAPEOFFSET

Active

E-Switch

SWITCH: DIP-SWITCH; POLES NUMBER: 4; 0.1A/50VDC; POS: 2; SMT; 100MΩ

Search across all available documentation for this part.

Active

E-Switch

SWITCH: DIP-SWITCH; POLES NUMBER: 4; 0.1A/50VDC; POS: 2; SMT; 100MΩ

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Length [x]	Length [x]	Height Above Board	Height Above Board [z]	Mounting Type	Contact Finish	Mechanical Life	Actuator Level	Circuit	Features	Washable	Voltage Rating	Electrical Life	Body Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Material	Actuator Type	Pitch [x]	Pitch [x]	Height Above Board [z]
E-Switch KAN1110RT	10	0.541 in	13.74 mm	1.6 mm	0.063 in	Surface Mount	Gold	2000 Cycles	Flush Recessed	SPST	Tape Seal		24 VDC	2000 Steps	Polyphenylene Sulfide (PPS)	25 mA	85 °C	-40 °C	Gull Wing	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm
E-Switch KAN1104RR-TAPEOFFSET	4	0.248 in	6.31 mm		0.064 in	Surface Mount	Gold	2000 Cycles	Flush Recessed	SPST			24 VDC	2000 Steps	Polyphenylene Sulfide (PPS)	25 mA	85 °C	-40 °C	Gull Wing	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm	1.63 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 1.23

General part information

Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
