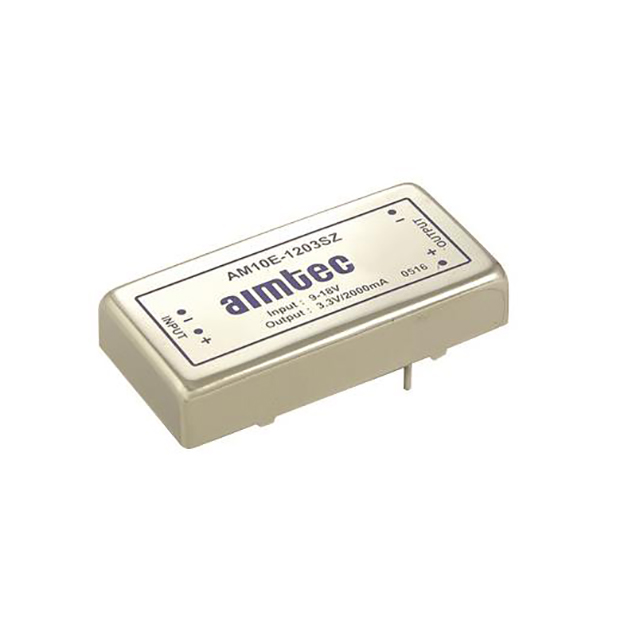

AM10E-2424SZ

Unknown

aimtec

DC DC CONVERTER 24V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM10E-2424SZ

Unknown

aimtec

DC DC CONVERTER 24V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 25.64
		5	$ 25.45
		10	$ 25.25
		24	$ 24.75
		48	$ 24.25
		72	$ 23.77
		96	$ 23.29

Description

General part information

AM10E Series

Isolated Module DC DC Converter 1 Output 24V 416mA 18V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM10E-2424SZ	AM10E Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus	CE, cURus, cURus, IEC, UL, CE, cULus, EN
Current - Output (Max)	-	1 - 690 mA
Current - Output (Max)	-	1 - 333 mA
Current - Output (Max) [Max]	416 mA	2 - 833 mA
Efficiency	86 %	83 - 86 %
Features	-	Remote On/Off
Mounting Type	Through Hole	Through Hole, Chassis Mount
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	71 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	4 Lead	4 - 5 Leads
Package / Case	5-DIP Module	5-DIP Module, 4-DIP Module, 6-DIP Module
Power (Watts)	10 W	10 W
Size / Dimension [x]	2 in	2 - 2.99 in
Size / Dimension [x]	50.8 mm	50.8 - 76 mm
Size / Dimension [y]	25.4 mm	1.04 - 25.4 mm
Size / Dimension [y]	25.4 mm	25.4 - 31.5 mm
Size / Dimension [z]	0.4 "	0.4 - 0.84 "
Size / Dimension [z]	10.2 mm	10.2 - 21.2 mm
Standard Number	-	62368-1, 60950-1
Type	Isolated Module	Isolated Module, Enclosed
Voltage - Input (Max) [Max]	36 V	18 - 160 V
Voltage - Input (Min) [Min]	18 V	9 - 40 V
Voltage - Isolation	1.5 kV	1.5 - 3000 kV
Voltage - Output 1	24 V	5 - 24 V
Voltage - Output 1	-	5 - 12 V
Voltage - Output 1	-	-12 - -5 V
Voltage - Output 2	-	-15 - -5 V

AM10E Series

DC DC CONVERTER +/-15V 10W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Approval Agency	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Efficiency	Power (Watts)	Voltage - Isolation	Voltage - Output 2	Type	Mounting Type	Package / Case	Voltage - Output 1	Standard Number	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Package / Case	Features
aimtec AM10E-2415DZ	85 °C	-40 °C	333 mA	333 mA	CE, cURus	2	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	18 V	ITE (Commercial)	84 %	10 W	1.5 kV	-15 V	Isolated Module	Through Hole	5-DIP Module	15 V
aimtec AM10E-1207DZ	85 °C	-40 °C	690 mA		CE, cULus, cURus, EN, IEC, UL	2	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	9 V	ITE (Commercial)	83 %	10 W	1.5 kV	-7.2 V	Isolated Module	Through Hole			62368-1	7.2 V	-7.2 V
aimtec AM10EW-11012SH22-NZ	85 °C	-40 °C			CE, cURus	1	25.4 mm	0.46 in	2 in	11.8 mm	50.8 mm	25.4 mm	160 V	40 V	ITE (Commercial)	84 %	10 W	2250 VDC		Isolated Module	Through Hole	4-DIP Module	12 V				833 mA
aimtec AM10EW-4805SH30-NZ	85 °C	-40 °C			CE, cURus	1	1.04 in	0.47 "	2.03 in	12 mm	51.5 mm	26.5 mm	75 V	18 V	ITE (Commercial)		10 W	3000 V		Isolated Module	Through Hole	6-DIP Module	5 V				2 A	5 Leads
aimtec AM10EW-4805DH30-NZ	85 °C	-40 °C	1 A	1 A	CE, cURus, UL	2	1.04 in	0.47 "	2.03 in	12 mm	51.5 mm	26.5 mm	75 V	18 V	ITE (Commercial)		10 W	3000 V	-5 V	Isolated Module	Through Hole				5 V	-5 V			Remote On/Off
aimtec AM10EW-2412DH30-NZ	85 °C	-40 °C			CE, cURus, UL	2	1.04 in	0.47 "	2.03 in	12 mm	51.5 mm	26.5 mm	36 V	9 V	ITE (Commercial)	86 %	10 W	3000 V	-12 V	Isolated Module	Through Hole				12 V	-12 V	416 mA		Remote On/Off
aimtec AM10E-2424SZ	85 °C	-40 °C			CE, cURus	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	18 V	ITE (Commercial)	86 %	10 W	1.5 kV		Isolated Module	Through Hole	5-DIP Module	24 V				416 mA	4 Lead
aimtec AM10EW-2405SH30-NZ	85 °C	-40 °C			CE, cURus, UL	1	1.04 in	0.47 "	2.03 in	12 mm	51.5 mm	26.5 mm	36 V	9 V	ITE (Commercial)		10 W	3000 V		Isolated Module	Through Hole	6-DIP Module	5 V				2 A	5 Leads	Remote On/Off
aimtec AM10EW-4812SH30-NZ-ST	71 °C	-40 °C			CE, cURus	1	1.24 in	0.84 "	2.99 in	21.2 mm	76 mm	31.5 mm	75 V	18 V	ITE (Commercial)	86 %	10 W	3000 V		Enclosed	Chassis Mount		12 V	60950-1			833 mA
