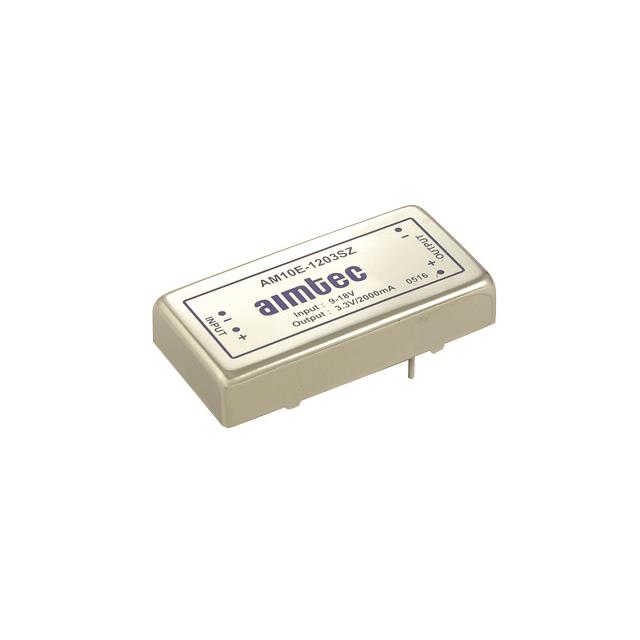

AM10E-1207DZ

Active

aimtec

DC DC CONVERTER +/-7.2V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM10E-1207DZ

Active

aimtec

DC DC CONVERTER +/-7.2V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM10E-1207DZ	AM10E Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cURus, IEC, UL, CE, cULus, EN	CE, cURus, cURus, IEC, UL, CE, cULus, EN
Current - Output (Max)	690 mA	1 - 690 mA
Current - Output (Max)	-	1 - 333 mA
Current - Output (Max)	-	2 - 833 mA
Efficiency	83 %	83 - 86 %
Features	-	Remote On/Off
Mounting Type	Through Hole	Through Hole, Chassis Mount
Number of Outputs	2	1 - 2
Operating Temperature [Max]	85 °C	71 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	-	5-DIP Module, 4-DIP Module, 6-DIP Module
Package / Case	-	4 - 5 Leads
Power (Watts)	10 W	10 W
Size / Dimension [x]	2 in	2 - 2.99 in
Size / Dimension [x]	50.8 mm	50.8 - 76 mm
Size / Dimension [y]	25.4 mm	1.04 - 25.4 mm
Size / Dimension [y]	25.4 mm	25.4 - 31.5 mm
Size / Dimension [z]	0.4 "	0.4 - 0.84 "
Size / Dimension [z]	10.2 mm	10.2 - 21.2 mm
Standard Number	62368-1	62368-1, 60950-1
Type	Isolated Module	Isolated Module, Enclosed
Voltage - Input (Max) [Max]	18 V	18 - 160 V
Voltage - Input (Min) [Min]	9 V	9 - 40 V
Voltage - Isolation	1.5 kV	1.5 - 3000 kV
Voltage - Output 1	-	5 - 24 V
Voltage - Output 1 [Max]	7.2 V	5 - 12 V
Voltage - Output 1 [Min]	-7.2 V	-12 - -5 V
Voltage - Output 2	-7.2 V	-15 - -5 V

AM10E Series

DC DC CONVERTER +/-15V 10W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Approval Agency	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Efficiency	Power (Watts)	Voltage - Isolation	Voltage - Output 2	Type	Mounting Type	Package / Case	Voltage - Output 1	Standard Number	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Package / Case	Features
aimtec AM10E-2415DZ	85 °C	-40 °C	333 mA	333 mA	CE, cURus	2	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	18 V	ITE (Commercial)	84 %	10 W	1.5 kV	-15 V	Isolated Module	Through Hole	5-DIP Module	15 V
aimtec AM10E-1207DZ	85 °C	-40 °C	690 mA		CE, cULus, cURus, EN, IEC, UL	2	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	9 V	ITE (Commercial)	83 %	10 W	1.5 kV	-7.2 V	Isolated Module	Through Hole			62368-1	7.2 V	-7.2 V
aimtec AM10EW-11012SH22-NZ	85 °C	-40 °C			CE, cURus	1	25.4 mm	0.46 in	2 in	11.8 mm	50.8 mm	25.4 mm	160 V	40 V	ITE (Commercial)	84 %	10 W	2250 VDC		Isolated Module	Through Hole	4-DIP Module	12 V				833 mA
aimtec AM10EW-4805SH30-NZ	85 °C	-40 °C			CE, cURus	1	1.04 in	0.47 "	2.03 in	12 mm	51.5 mm	26.5 mm	75 V	18 V	ITE (Commercial)		10 W	3000 V		Isolated Module	Through Hole	6-DIP Module	5 V				2 A	5 Leads
aimtec AM10EW-4805DH30-NZ	85 °C	-40 °C	1 A	1 A	CE, cURus, UL	2	1.04 in	0.47 "	2.03 in	12 mm	51.5 mm	26.5 mm	75 V	18 V	ITE (Commercial)		10 W	3000 V	-5 V	Isolated Module	Through Hole				5 V	-5 V			Remote On/Off
aimtec AM10EW-2412DH30-NZ	85 °C	-40 °C			CE, cURus, UL	2	1.04 in	0.47 "	2.03 in	12 mm	51.5 mm	26.5 mm	36 V	9 V	ITE (Commercial)	86 %	10 W	3000 V	-12 V	Isolated Module	Through Hole				12 V	-12 V	416 mA		Remote On/Off
aimtec AM10E-2424SZ	85 °C	-40 °C			CE, cURus	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	18 V	ITE (Commercial)	86 %	10 W	1.5 kV		Isolated Module	Through Hole	5-DIP Module	24 V				416 mA	4 Lead
aimtec AM10EW-2405SH30-NZ	85 °C	-40 °C			CE, cURus, UL	1	1.04 in	0.47 "	2.03 in	12 mm	51.5 mm	26.5 mm	36 V	9 V	ITE (Commercial)		10 W	3000 V		Isolated Module	Through Hole	6-DIP Module	5 V				2 A	5 Leads	Remote On/Off
aimtec AM10EW-4812SH30-NZ-ST	71 °C	-40 °C			CE, cURus	1	1.24 in	0.84 "	2.99 in	21.2 mm	76 mm	31.5 mm	75 V	18 V	ITE (Commercial)	86 %	10 W	3000 V		Enclosed	Chassis Mount		12 V	60950-1			833 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 29.51
		10	$ 25.93
		25	$ 24.64
		50	$ 23.70
		100	$ 22.79
		250	$ 21.65

Description

General part information

AM10E Series

Isolated Module DC DC Converter 2 Output -7.2 ~ 7.2V -7.2V 690mA, 690mA 9V - 18V Input
