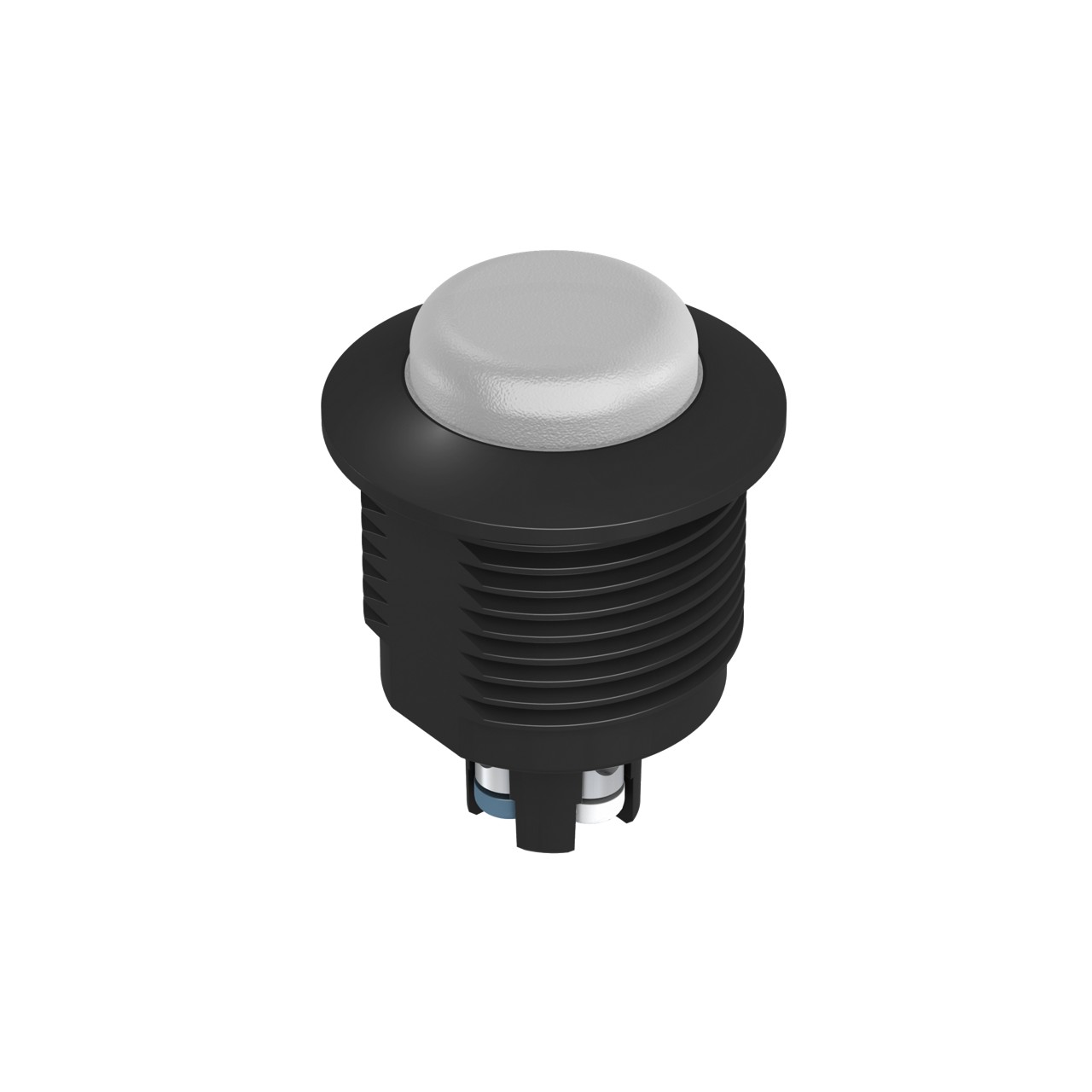

S22DLHGT

Active

BANNER ENGINEERING

S22 DAYLIGHT VISIBLE EZ-LIGHT HIGH INTENSITY 22 MM 1-COLOR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

S22 DAYLIGHT VISIBLE EZ-LIGHT HIGH INTENSITY 22 MM 1-COLOR

Technical Specifications

Parameters and characteristics for this part

Specification	S22DLHGT

Current	60 mA
Ingress Protection	NEMA 4X, IP69K, IP67
Lamp Color	Green
Millicandela Rating	20 mcd
Panel Cutout Dimensions	22 mm
Panel Cutout Dimensions [custom]	0.87 in
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Screw Terminal
Type	LED
Voltage [Max]	30 V
Voltage [Min]	9 V

Part	Panel Cutout Dimensions	Panel Cutout Dimensions [custom]	Termination Style	Ingress Protection	Lamp Color	Ratings	Voltage [Min]	Voltage [Max]	Current	Millicandela Rating	Panel Cutout Shape	Type	Lens Transparency	Panel Cutout Dimensions	Millicandela Rating [custom]	Millicandela Rating [custom]
BANNER ENGINEERING S22DLHGT	22 mm	0.87 in	Screw Terminal	IP67 IP69K NEMA 4X	Green	DC	9 V	30 V	60 mA	20 mcd	Round	LED
BANNER ENGINEERING S22DLHBQ	22 mm	0.87 in	Quick Connect	IP67 IP69K NEMA 4X	Blue	DC	9 V	30 V	60 mA	6.5 mcd	Round	LED
BANNER ENGINEERING S22DLWXXPQ	22 mm	0.87 in	Quick Connect	IP67 IP69K NEMA 4X	White	DC	10 V	30 V	25 mA	4 mcd	Round	LED	Clear
BANNER ENGINEERING S22DLGRXPT	22 mm		Screw Terminal	IP67 IP69K NEMA 4X	Green Red	DC	10 V	30 V	25 mA		Round	LED	Diffused	0.866 in	1.4 mcd	2.3 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 58.00
Newark	Each	1	$ 59.00

General part information

LED Panel Indicator Green 9V ~ 30V 60mA Screw Terminal
