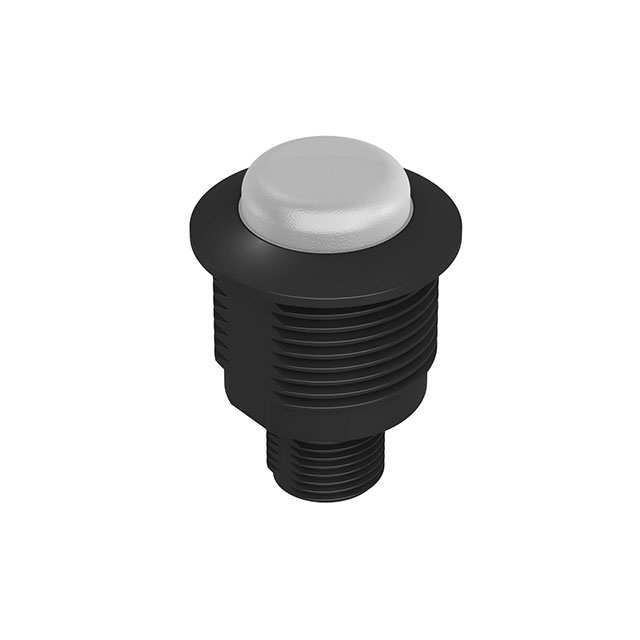

S22DLWXXPQ

Active

BANNER ENGINEERING

S22 DAYLIGHT VISIBLE EZ LIGHT - 22 MM - IP67

Search across all available documentation for this part.

Active

BANNER ENGINEERING

S22 DAYLIGHT VISIBLE EZ LIGHT - 22 MM - IP67

Technical Specifications

Parameters and characteristics for this part

Specification	S22DLWXXPQ

Current	25 mA
Ingress Protection	NEMA 4X, IP69K, IP67
Lamp Color	White
Lens Transparency	Clear
Millicandela Rating	4 mcd
Panel Cutout Dimensions	22 mm
Panel Cutout Dimensions [custom]	0.87 in
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Quick Connect
Type	LED
Voltage [Max]	30 V
Voltage [Min]	10 V

Part	Panel Cutout Dimensions	Panel Cutout Dimensions [custom]	Termination Style	Ingress Protection	Lamp Color	Ratings	Voltage [Min]	Voltage [Max]	Current	Millicandela Rating	Panel Cutout Shape	Type	Lens Transparency	Panel Cutout Dimensions	Millicandela Rating [custom]	Millicandela Rating [custom]
BANNER ENGINEERING S22DLHGT	22 mm	0.87 in	Screw Terminal	IP67 IP69K NEMA 4X	Green	DC	9 V	30 V	60 mA	20 mcd	Round	LED
BANNER ENGINEERING S22DLHBQ	22 mm	0.87 in	Quick Connect	IP67 IP69K NEMA 4X	Blue	DC	9 V	30 V	60 mA	6.5 mcd	Round	LED
BANNER ENGINEERING S22DLWXXPQ	22 mm	0.87 in	Quick Connect	IP67 IP69K NEMA 4X	White	DC	10 V	30 V	25 mA	4 mcd	Round	LED	Clear
BANNER ENGINEERING S22DLGRXPT	22 mm		Screw Terminal	IP67 IP69K NEMA 4X	Green Red	DC	10 V	30 V	25 mA		Round	LED	Diffused	0.866 in	1.4 mcd	2.3 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 36.00
Newark	Each	1	$ 37.00

General part information

LED Panel Indicator White Clear 10V ~ 30V 25mA Quick Connect
