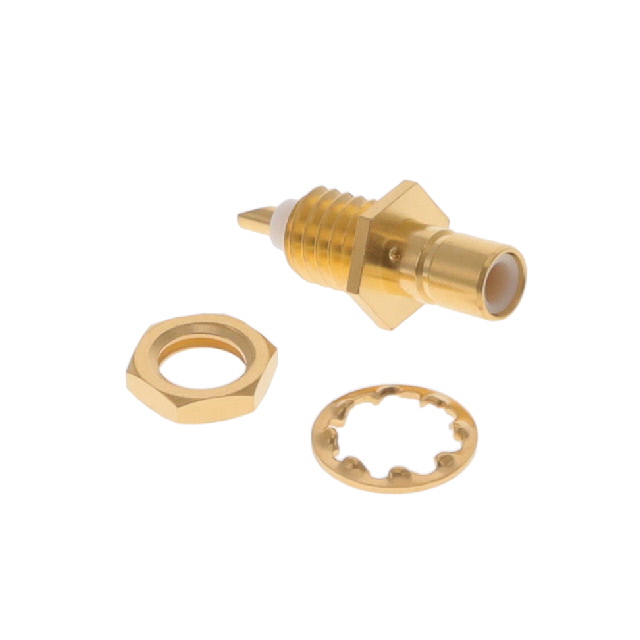

R114553000W
ActiveRadiall USA, Inc.
SMB / BULKHEAD JACK RECEPTACLE F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R114553000W
ActiveRadiall USA, Inc.
SMB / BULKHEAD JACK RECEPTACLE F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R114553000W |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Extended Insulation |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.74 | |
| 10 | $ 17.98 | |||
| 25 | $ 17.04 | |||
| 50 | $ 16.79 | |||
| 100 | $ 14.82 | |||
| 250 | $ 13.83 | |||
| 500 | $ 13.53 | |||
Description
General part information
R11455 Series
SMB Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
