R114553000 - R114553000

R114553000

Active
Radiall USA, Inc.

RF / COAXIAL CONNECTOR, SMB COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENManufacturer Catalogue EN
R114553000 - R114553000

R114553000

Active
Radiall USA, Inc.

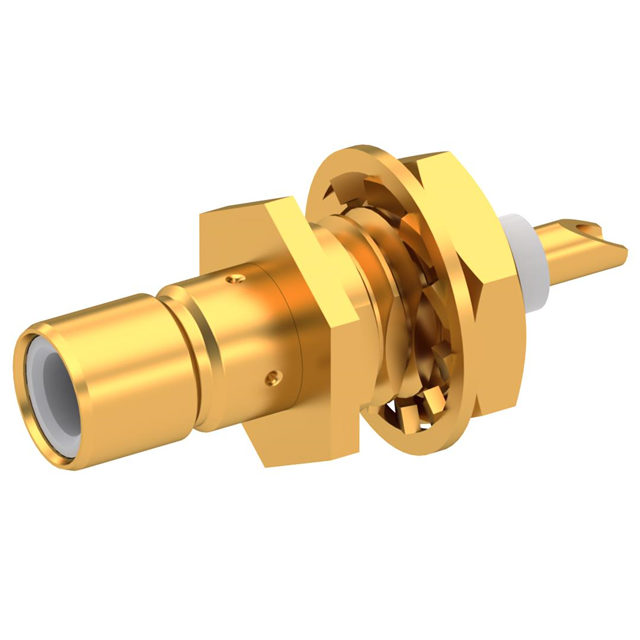

RF / COAXIAL CONNECTOR, SMB COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BRASS

Deep-Dive with AI

DocumentsTechnical Data Sheet ENManufacturer Catalogue EN

Technical Specifications

Parameters and characteristics for this part

SpecificationR114553000
Body FinishGold
Body MaterialBrass
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMB
Connector TypeMale Pin, Jack
Contact TerminationSolder Cup
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Frequency - Max [Max]4 GHz
Housing ColorGold
Impedance50 Ohms
Includes1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles500
Mounting FeatureBulkhead - Rear Side Nut
Number of Ports1
Operating Temperature [Max]165 °C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder
Voltage Rating500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 14.04
10$ 12.45
25$ 11.97
50$ 11.49
100$ 10.85
300$ 9.89
500$ 9.26
1000$ 8.49
NewarkEach 1$ 11.12
50$ 9.41
100$ 8.78
250$ 8.22
500$ 7.81

Description

General part information

R11455 Series

SMB Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
