HTST-108-01-T-DV

Active

Samtec Inc.

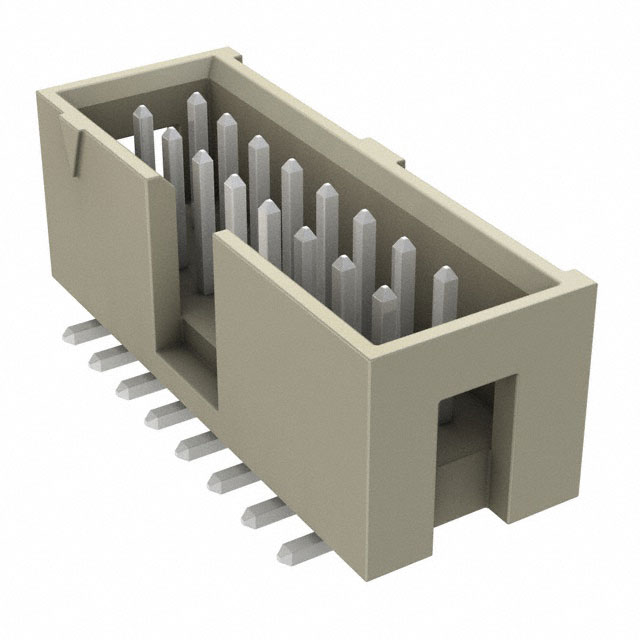

CONNECTOR, HEADER, 16POS, 2ROW, 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HTST Datasheet +2

HTST-108-01-T-DV

Active

Samtec Inc.

CONNECTOR, HEADER, 16POS, 2ROW, 2.54MM

Deep-Dive with AI

DocumentsDatasheet HTST Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTST-108-01-T-DV

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Natural
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

HTST-108 Series

Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip, Cable Mate

Part	Pitch - Mating	Pitch - Mating	Insulation Color	Mounting Type	Style	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Features	Contact Type	Number of Positions Loaded	Termination	Shrouding	Number of Positions	Connector Type	Contact Material	Contact Finish - Post	Number of Rows	Contact Shape	Fastening Type	Insulation Height [custom]	Insulation Height [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded [custom]
Samtec Inc. HTST-108-01-T-DV	0.1 in	2.54 mm	Natural	Surface Mount	Board to Cable/Wire	UL94 V-0	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Keying Slot	Male Pin	All	Solder	Shrouded - 4 Wall	16	Header	Phosphor Bronze	Tin	2	Square	Push-Pull	0.35 in	8.89 mm	-55 °C	105 ░C	6.35 mm	0.25 in
Samtec Inc. HTST-108-01-L-DV	0.1 in	2.54 mm	Natural	Surface Mount	Board to Cable/Wire	UL94 V-0	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Keying Slot	Male Pin	All	Solder	Shrouded - 4 Wall	16	Header	Phosphor Bronze	Tin	2	Square	Push-Pull	0.35 in	8.89 mm	-55 °C	125 °C	6.35 mm	0.25 in	Gold	10 çin	0.25 çm
Samtec Inc. HTST-108-04-G-D-RA	0.1 in	2.54 mm	Natural	Through Hole Right Angle	Board to Cable/Wire	UL94 V-0	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Keying Slot	Male Pin	All	Solder	Shrouded - 4 Wall	16	Header	Phosphor Bronze	Gold	2	Square	Push-Pull			-55 °C	125 °C	6.35 mm	0.25 in	Gold	10 çin	0.25 çm	0.13 in	3.3 mm	3 µin	0.076 µm	0.365 in	9.27 mm
Samtec Inc. HTST-106-01-H-DV-A-P	0.1 in	2.54 mm	Natural	Surface Mount	Board to Cable/Wire	UL94 V-0	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Board Guide Keying Slot Pick and Place	Male Pin	All	Solder	Shrouded - 4 Wall		Header	Phosphor Bronze	Gold	2	Square	Push-Pull	0.35 in	8.89 mm	-55 °C	125 °C	6.35 mm	0.25 in	Gold	30 Áin	0.76 Ám			3 µin	0.076 µm			12
Samtec Inc. HTST-108-04-LM-D-RA	0.1 in	2.54 mm	Natural	Through Hole Right Angle	Board to Cable/Wire	UL94 V-0	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Keying Slot	Male Pin	All	Solder	Shrouded - 4 Wall	16	Header	Phosphor Bronze	Tin	2	Square	Push-Pull			-55 °C	125 °C	6.35 mm	0.25 in	Gold	10 çin	0.25 çm	0.13 in	3.3 mm			0.365 in	9.27 mm
Samtec Inc. HTST-108-01-S-DV-P	0.1 in	2.54 mm	Natural	Surface Mount	Board to Cable/Wire	UL94 V-0	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Keying Slot Pick and Place	Male Pin	All	Solder	Shrouded - 4 Wall	16	Header	Phosphor Bronze	Tin	2	Square	Push-Pull	0.35 in	8.89 mm	-55 °C	125 °C	6.35 mm	0.25 in	Gold	30 Áin	0.76 Ám
Samtec Inc. HTST-125-01-F-DV-10	0.1 in	2.54 mm	Natural	Surface Mount	Board to Cable/Wire	UL94 V-0	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Keying Slot	Male Pin		Solder	Shrouded - 4 Wall		Header	Phosphor Bronze	Tin	2	Square	Push-Pull	0.35 in	8.89 mm	-55 °C	125 °C	6.35 mm	0.25 in	Gold	3 µin	0.076 µm							50	49
Samtec Inc. HTST-106-01-L-DV	0.1 in	2.54 mm	Natural	Surface Mount	Board to Cable/Wire	UL94 V-0	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Keying Slot	Male Pin	All	Solder	Shrouded - 4 Wall		Header	Phosphor Bronze	Tin	2	Square	Push-Pull	0.35 in	8.89 mm	-55 °C	125 °C	6.35 mm	0.25 in	Gold	10 çin	0.25 çm							12
Samtec Inc. HTST-125-01-TM-DV	0.1 in	2.54 mm	Natural	Surface Mount	Board to Cable/Wire	UL94 V-0	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Keying Slot	Male Pin	All	Solder	Shrouded - 4 Wall		Header	Phosphor Bronze	Tin	2	Square	Push-Pull	0.35 in	8.89 mm	-55 °C	105 ░C	6.35 mm	0.25 in										50
Samtec Inc. HTST-106-01-S-DV-A-TR	0.1 in	2.54 mm	Natural	Surface Mount	Board to Cable/Wire	UL94 V-0	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Board Guide Keying Slot	Male Pin	All	Solder	Shrouded - 4 Wall		Header	Phosphor Bronze	Tin	2	Square	Push-Pull	0.35 in	8.89 mm	-55 °C	125 °C	6.35 mm	0.25 in	Gold	30 Áin	0.76 Ám							12
