HTST-108-01-L-DV - HTST-108-01-S-DV

HTST-108-01-L-DV

Active
Samtec Inc.

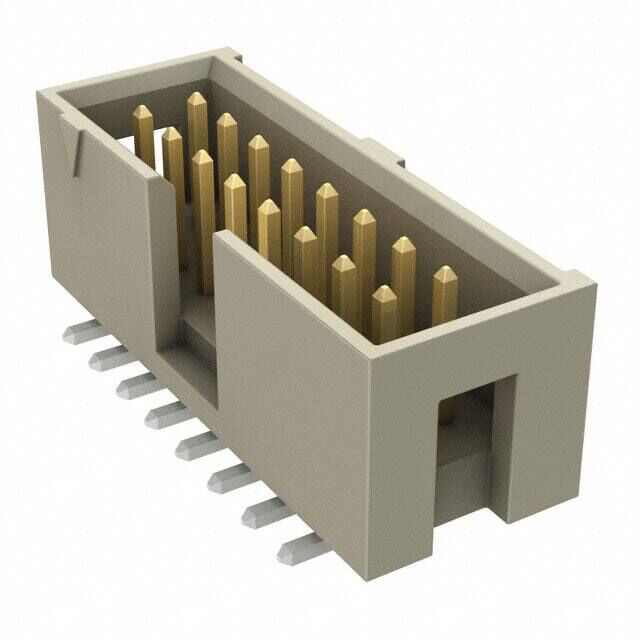

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT, HTST SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHTST DatasheetDatasheet+2
HTST-108-01-L-DV - HTST-108-01-S-DV

HTST-108-01-L-DV

Active
Samtec Inc.

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT, HTST SERIES

Deep-Dive with AI

DocumentsHTST DatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationHTST-108-01-L-DV
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Length - Mating6.35 mm
Contact Length - Mating0.25 in
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
FeaturesKeying Slot
Insulation ColorNatural
Insulation Height [custom]0.35 in
Insulation Height [custom]8.89 mm
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions16
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder

HTST-108 Series

Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip, Cable Mate

PartPitch - MatingPitch - MatingInsulation ColorMounting TypeStyleMaterial Flammability RatingRow Spacing - Mating [x]Row Spacing - Mating [x]Insulation MaterialFeaturesContact TypeNumber of Positions LoadedTerminationShroudingNumber of PositionsConnector TypeContact MaterialContact Finish - PostNumber of RowsContact ShapeFastening TypeInsulation Height [custom]Insulation Height [custom]Operating Temperature [Min]Operating Temperature [Max]Contact Length - MatingContact Length - MatingContact Finish - MatingContact Finish Thickness - MatingContact Finish Thickness - MatingContact Length - PostContact Length - PostContact Finish Thickness - PostContact Finish Thickness - PostInsulation HeightInsulation HeightNumber of PositionsNumber of Positions Loaded [custom]
Samtec Inc.
HTST-108-01-T-DV
0.1 in
2.54 mm
Natural
Surface Mount
Board to Cable/Wire
UL94 V-0
2.54 mm
0.1 in
Liquid Crystal Polymer (LCP)
Keying Slot
Male Pin
All
Solder
Shrouded - 4 Wall
16
Header
Phosphor Bronze
Tin
2
Square
Push-Pull
0.35 in
8.89 mm
-55 °C
105 ░C
6.35 mm
0.25 in
Samtec Inc.
HTST-108-01-L-DV
0.1 in
2.54 mm
Natural
Surface Mount
Board to Cable/Wire
UL94 V-0
2.54 mm
0.1 in
Liquid Crystal Polymer (LCP)
Keying Slot
Male Pin
All
Solder
Shrouded - 4 Wall
16
Header
Phosphor Bronze
Tin
2
Square
Push-Pull
0.35 in
8.89 mm
-55 °C
125 °C
6.35 mm
0.25 in
Gold
10 çin
0.25 çm
Samtec Inc.
HTST-108-04-G-D-RA
0.1 in
2.54 mm
Natural
Through Hole
Right Angle
Board to Cable/Wire
UL94 V-0
2.54 mm
0.1 in
Liquid Crystal Polymer (LCP)
Keying Slot
Male Pin
All
Solder
Shrouded - 4 Wall
16
Header
Phosphor Bronze
Gold
2
Square
Push-Pull
-55 °C
125 °C
6.35 mm
0.25 in
Gold
10 çin
0.25 çm
0.13 in
3.3 mm
3 µin
0.076 µm
0.365 in
9.27 mm
Samtec Inc.
HTST-106-01-H-DV-A-P
0.1 in
2.54 mm
Natural
Surface Mount
Board to Cable/Wire
UL94 V-0
2.54 mm
0.1 in
Liquid Crystal Polymer (LCP)
Board Guide
Keying Slot
Pick and Place
Male Pin
All
Solder
Shrouded - 4 Wall
Header
Phosphor Bronze
Gold
2
Square
Push-Pull
0.35 in
8.89 mm
-55 °C
125 °C
6.35 mm
0.25 in
Gold
30 Áin
0.76 Ám
3 µin
0.076 µm
12
Samtec Inc.
HTST-108-04-LM-D-RA
0.1 in
2.54 mm
Natural
Through Hole
Right Angle
Board to Cable/Wire
UL94 V-0
2.54 mm
0.1 in
Liquid Crystal Polymer (LCP)
Keying Slot
Male Pin
All
Solder
Shrouded - 4 Wall
16
Header
Phosphor Bronze
Tin
2
Square
Push-Pull
-55 °C
125 °C
6.35 mm
0.25 in
Gold
10 çin
0.25 çm
0.13 in
3.3 mm
0.365 in
9.27 mm
Samtec Inc.
HTST-108-01-S-DV-P
0.1 in
2.54 mm
Natural
Surface Mount
Board to Cable/Wire
UL94 V-0
2.54 mm
0.1 in
Liquid Crystal Polymer (LCP)
Keying Slot
Pick and Place
Male Pin
All
Solder
Shrouded - 4 Wall
16
Header
Phosphor Bronze
Tin
2
Square
Push-Pull
0.35 in
8.89 mm
-55 °C
125 °C
6.35 mm
0.25 in
Gold
30 Áin
0.76 Ám
Samtec Inc.
HTST-125-01-F-DV-10
0.1 in
2.54 mm
Natural
Surface Mount
Board to Cable/Wire
UL94 V-0
2.54 mm
0.1 in
Liquid Crystal Polymer (LCP)
Keying Slot
Male Pin
Solder
Shrouded - 4 Wall
Header
Phosphor Bronze
Tin
2
Square
Push-Pull
0.35 in
8.89 mm
-55 °C
125 °C
6.35 mm
0.25 in
Gold
3 µin
0.076 µm
50
49
Samtec Inc.
HTST-106-01-L-DV
0.1 in
2.54 mm
Natural
Surface Mount
Board to Cable/Wire
UL94 V-0
2.54 mm
0.1 in
Liquid Crystal Polymer (LCP)
Keying Slot
Male Pin
All
Solder
Shrouded - 4 Wall
Header
Phosphor Bronze
Tin
2
Square
Push-Pull
0.35 in
8.89 mm
-55 °C
125 °C
6.35 mm
0.25 in
Gold
10 çin
0.25 çm
12
Samtec Inc.
HTST-125-01-TM-DV
0.1 in
2.54 mm
Natural
Surface Mount
Board to Cable/Wire
UL94 V-0
2.54 mm
0.1 in
Liquid Crystal Polymer (LCP)
Keying Slot
Male Pin
All
Solder
Shrouded - 4 Wall
Header
Phosphor Bronze
Tin
2
Square
Push-Pull
0.35 in
8.89 mm
-55 °C
105 ░C
6.35 mm
0.25 in
50
Samtec Inc.
HTST-106-01-S-DV-A-TR
0.1 in
2.54 mm
Natural
Surface Mount
Board to Cable/Wire
UL94 V-0
2.54 mm
0.1 in
Liquid Crystal Polymer (LCP)
Board Guide
Keying Slot
Male Pin
All
Solder
Shrouded - 4 Wall
Header
Phosphor Bronze
Tin
2
Square
Push-Pull
0.35 in
8.89 mm
-55 °C
125 °C
6.35 mm
0.25 in
Gold
30 Áin
0.76 Ám
12
