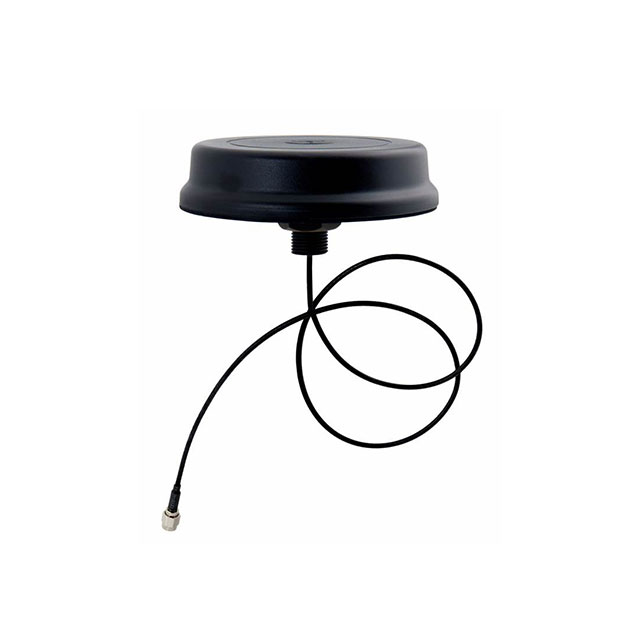

LPS69273NT-61SMAM
ActiveTE Connectivity Raychem Cable Protection
ANTENNA PUCK 5.4DBI GAIN 960MHZ/2700MHZ
Deep-Dive with AI
Search across all available documentation for this part.
LPS69273NT-61SMAM
ActiveTE Connectivity Raychem Cable Protection
ANTENNA PUCK 5.4DBI GAIN 960MHZ/2700MHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LPS69273NT-61SMAM |
|---|---|
| Applications | LTE, WLAN, Wi-Fi |
| Features | Cable - 610mm |
| Frequency (Center/Band) | 700 MHz, 850 MHz, 1.8 GHz, 2.6 GHz, 1.9 GHz, 900 MHz, 2.4 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 2.7 GHz |
| Frequency Range [Min] | 698 MHz, 1.71 GHz |
| Gain | 5.9 dBi, 2.5 dBi, 4 dBi, 3.8 dBi, 4.8 dBi, 1.1 dBi, 2.3 dBi, 4.9 dBi |
| Height (Max) | 31 mm |
| Height (Max) [Max] | 1.22 in |
| Ingress Protection | IP67 |
| Number of Bands | 8 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Cellular, WiFi |
| VSWR | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 68.99 | |
| 10 | $ 54.28 | |||
| 25 | $ 50.53 | |||
| 100 | $ 47.93 | |||
Description
General part information
LPS69273 Series
Dome/Puck Antenna, Multi Band, Cellular, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, > 6 dBi Peak Gain
