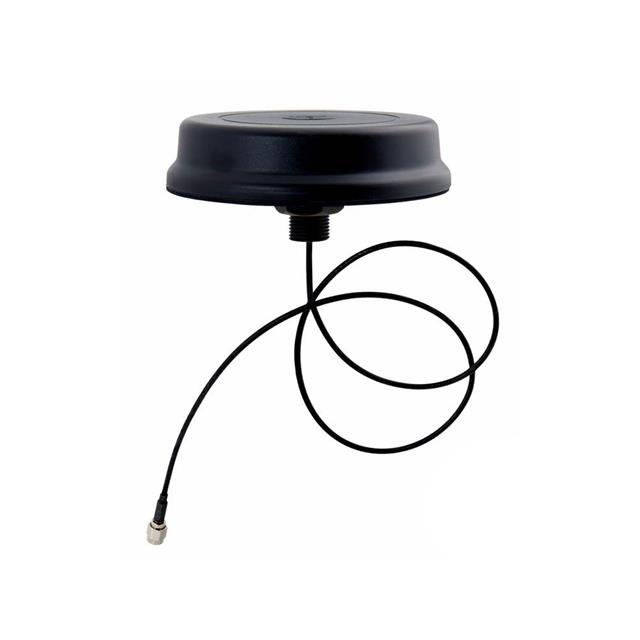

LPS69273NT-61RTNM

Active

TE Connectivity Raychem Cable Protection

RF ANT 700MHZ/850MHZ PUCK PNL MT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RF ANT 700MHZ/850MHZ PUCK PNL MT

Technical Specifications

Parameters and characteristics for this part

Part	Frequency Range [Max]	Frequency Range [Min]	Height (Max)	Height (Max) [Max]	Ingress Protection	Number of Bands	Power - Max [Max]	Frequency Group	Gain	Frequency (Center/Band)	Applications	Features	VSWR	RF Family/Standard
TE Connectivity Raychem Cable Protection LPS69273NT-61SMAM	2.7 GHz 960 MHz	1.71 GHz 698 MHz	31 mm	1.22 in	IP67	8	10 W	Wide Band	1.1 dBi 2.3 dBi 2.5 dBi 3.8 dBi 4 dBi 4.8 dBi 4.9 dBi 5.9 dBi	1.8 GHz 1.9 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	LTE Wi-Fi WLAN	Cable - 610mm	3	Cellular WiFi
TE Connectivity Raychem Cable Protection LPS69273NT-61RTNM	2.7 GHz 960 MHz	1.71 GHz 698 MHz	31 mm	1.22 in	IP67	8	10 W	Wide Band	1.1 dBi 2.3 dBi 2.5 dBi 3.8 dBi 4 dBi 4.8 dBi 4.9 dBi 5.9 dBi	1.8 GHz 1.9 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	LTE Wi-Fi WLAN	Cable - 610mm	3	Cellular WiFi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.24

General part information

RF ANTENNA LTE, Wi-Fi, WLAN Puck RP-TNC Male Panel Mount
