8237-7000

Obsolete

3M (TC)

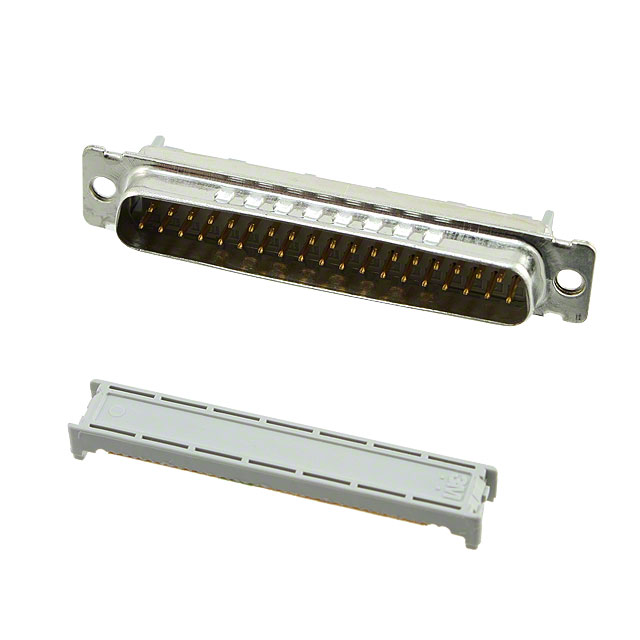

CONN D-SUB PLUG 37P PNL MNT IDC

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN D-SUB PLUG 37P PNL MNT IDC

Technical Specifications

Parameters and characteristics for this part

Specification	8237-7000

Color	Gray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	IDC, Ribbon Cable

Part	Contact Material	Number of Rows	Contact Type	Shell Size, Connector Layout	Contact Finish	Dielectric Material	Features	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Material Flammability Rating	Connector Style	Connector Type	Termination	Flange Feature	Contact Finish Thickness	Contact Finish Thickness
3M (TC) 8237-6009	Copper Alloy	2	Signal	4 (DC C)	Gold	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through Grounding Indents	Gray	105 ░C	-55 °C	37	UL94 V-0	D-Sub	Male Pins Plug	IDC Ribbon Cable	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin
3M (TC) 8237-7003	Copper Alloy	2	Signal	4 (DC C)	Gold	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Grounding Indents	Gray	105 ░C	-55 °C	37	UL94 V-0	D-Sub	Male Pins Plug	IDC Ribbon Cable	Housing/Shell (4-40)	0.76 Ám	30 Áin
3M (TC) 8237-6003	Copper Alloy	2	Signal	4 (DC C)	Gold	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through Grounding Indents	Gray	105 ░C	-55 °C	37	UL94 V-0	D-Sub	Male Pins Plug	IDC Ribbon Cable	Housing/Shell (4-40)	0.76 Ám	30 Áin
3M (TC) 8237-8000	Copper Alloy	2	Signal	4 (DC C)	Gold	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through Grounding Indents	Gray	105 ░C	-55 °C	37	UL94 V-0	D-Sub	Male Pins Plug	IDC Ribbon Cable	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin
3M (TC) 8237-7000	Copper Alloy	2	Signal	4 (DC C)	Gold	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Grounding Indents	Gray	105 ░C	-55 °C	37	UL94 V-0	D-Sub	Male Pins Plug	IDC Ribbon Cable	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Plug, Male Pins Connector
