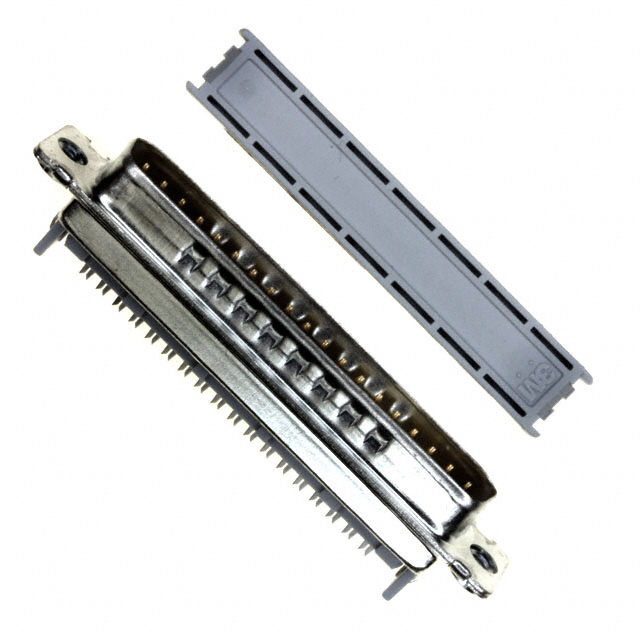

8237-6003
Active3M (TC)
D SUB CONNECTOR, DB37, 37 CONTACTS, PLUG, IDC / IDT, DC, 8200 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
8237-6003
Active3M (TC)
D SUB CONNECTOR, DB37, 37 CONTACTS, PLUG, IDC / IDT, DC, 8200 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8237-6003 |
|---|---|
| Color | Gray |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Glass Filled, Polybutylene Terephthalate (PBT), Polyester |
| Features | Grounding Indents, Feed Through |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | IDC, Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.93 | |
| 10 | $ 12.34 | |||
| 25 | $ 11.87 | |||
| 40 | $ 11.39 | |||
| 100 | $ 10.76 | |||
| 300 | $ 9.81 | |||
| 500 | $ 9.18 | |||
| 1000 | $ 8.42 | |||
Description
General part information
8237 Series
2-piece, open cover plugs and sockets are fully compatible with 0.050" spaced flat cable. Accommodates 26 and 28 AWG solid and stranded wire. A full range of 3M backshells and strain reliefs also available.
