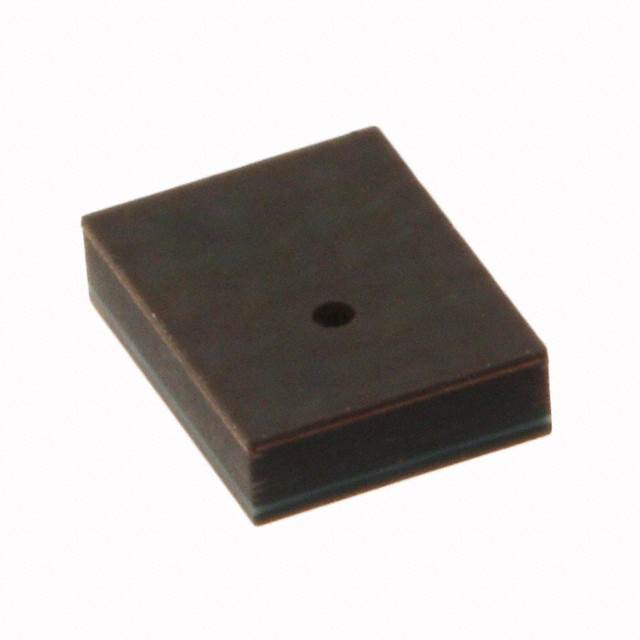

MP34DT01

Active

STMicroelectronics

MIC MEMS DIGITAL PDM OMNI -26DB

Search across all available documentation for this part.

Active

STMicroelectronics

MIC MEMS DIGITAL PDM OMNI -26DB

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Range [Min]	Voltage Range [Max]	Type	Shape	Termination	Current - Supply	Height (Max) [Max]	Height (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Port Location	Sensitivity	S/N Ratio	Frequency Range [Max]	Frequency Range [Min]	Direction	Voltage - Rated	Output Type	Function	Embedded	Supplied Contents	Contents	Utilized IC / Part	Secondary Attributes
STMicroelectronics MP34DT01TR	1.64 V	3.6 V	MEMS (Silicon)	Rectangular	Solder Pads	600 µA	0.043 in	1.1 mm	4 mm	3 mm	0.118 in	0.157 "	Top	-26 dB	63 dB	10 kHz	100 Hz	Omnidirectional	1.8 V	Digital PDM
STMicroelectronics STEVAL-MKI138V1			Audio																		MEMS Omnidirectional Microphones	32-Bit MCU	Board(s)	Board(s)	MP34DT01 STM32F107RC	Digital Output
STMicroelectronics MP34DT01	1.64 V	3.6 V	MEMS (Silicon)	Rectangular	Solder Pads	600 µA	0.043 in	1.1 mm	4 mm	3 mm	0.118 in	0.157 "	Top	-26 dB	63 dB	10 kHz	100 Hz	Omnidirectional	1.8 V	Digital PDM
STMicroelectronics STEVAL-MKI117V1			Audio																		MEMS Omnidirectional Microphones	32-Bit MCU	Board(s)	Board(s)	MP34DT01 STM32F107RC	Digital Output

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 Hz ~ 10 kHz Digital, PDM Microphone MEMS (Silicon) 1.64 V ~ 3.6 V Omnidirectional (-26dB ±3dB @ 94dB SPL) Solder Pads
