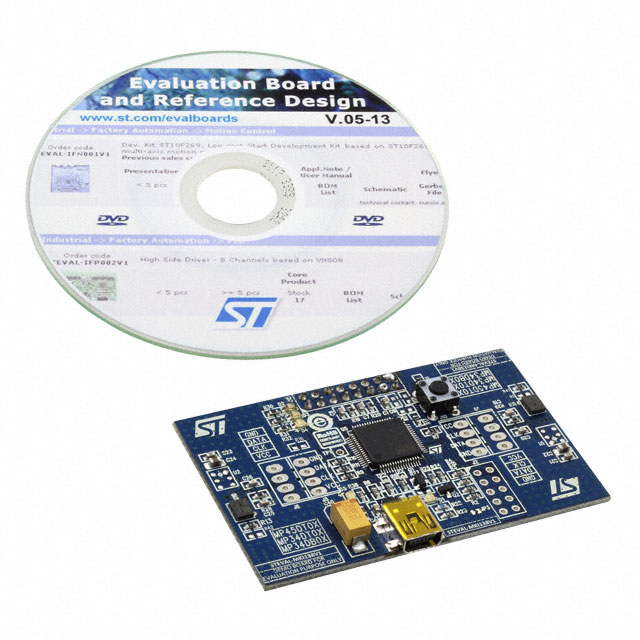

STEVAL-MKI138V1

Obsolete

STMicroelectronics

BOARD EVAL FOR MP34DT01

Search across all available documentation for this part.

Obsolete

STMicroelectronics

BOARD EVAL FOR MP34DT01

Technical Specifications

Parameters and characteristics for this part

Specification	STEVAL-MKI138V1

Contents	Board(s)
Embedded	MCU, 32-Bit
Embedded	True
Function	MEMS Omnidirectional Microphones
Secondary Attributes	Digital Output
Supplied Contents	Board(s)
Type	Audio
Utilized IC / Part	MP34DT01, STM32F107RC

Part	Voltage Range [Min]	Voltage Range [Max]	Type	Shape	Termination	Current - Supply	Height (Max) [Max]	Height (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Port Location	Sensitivity	S/N Ratio	Frequency Range [Max]	Frequency Range [Min]	Direction	Voltage - Rated	Output Type	Function	Embedded	Supplied Contents	Contents	Utilized IC / Part	Secondary Attributes
STMicroelectronics MP34DT01TR	1.64 V	3.6 V	MEMS (Silicon)	Rectangular	Solder Pads	600 µA	0.043 in	1.1 mm	4 mm	3 mm	0.118 in	0.157 "	Top	-26 dB	63 dB	10 kHz	100 Hz	Omnidirectional	1.8 V	Digital PDM
STMicroelectronics STEVAL-MKI138V1			Audio																		MEMS Omnidirectional Microphones	32-Bit MCU	Board(s)	Board(s)	MP34DT01 STM32F107RC	Digital Output
STMicroelectronics MP34DT01	1.64 V	3.6 V	MEMS (Silicon)	Rectangular	Solder Pads	600 µA	0.043 in	1.1 mm	4 mm	3 mm	0.118 in	0.157 "	Top	-26 dB	63 dB	10 kHz	100 Hz	Omnidirectional	1.8 V	Digital PDM
STMicroelectronics STEVAL-MKI117V1			Audio																		MEMS Omnidirectional Microphones	32-Bit MCU	Board(s)	Board(s)	MP34DT01 STM32F107RC	Digital Output

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MP34DT01, STM32F107RC - MEMS Omnidirectional Microphones Audio Evaluation Board
