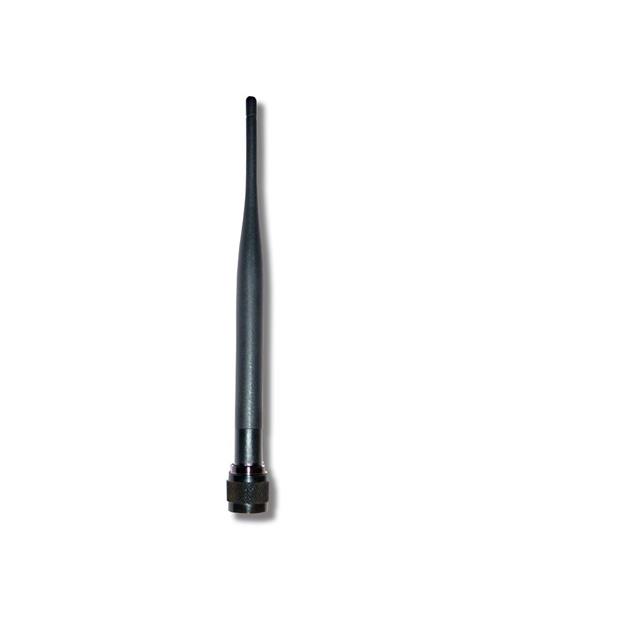

RD2458-5-SMA
ActiveTE Connectivity Raychem Cable Protection
DIPOL,RDUCK,FIXED,SMAM 2400-5850MHZ,5DBI
Deep-Dive with AI
Search across all available documentation for this part.
RD2458-5-SMA
ActiveTE Connectivity Raychem Cable Protection
DIPOL,RDUCK,FIXED,SMAM 2400-5850MHZ,5DBI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RD2458-5-SMA |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | WiMax™, Wi-Fi |
| Frequency (Center/Band) | 2.4 GHz, 5.8 GHz, 5.3 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.35 GHz, 5.85 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz, 5.725 GHz |
| Gain | 3 dBi, 5 dBi |
| Height (Max) | 155 mm |
| Height (Max) [Max] | 6.102 in |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | WiFi |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.32 | |
| 10 | $ 18.69 | |||
| 25 | $ 16.99 | |||
| 100 | $ 15.10 | |||
| 250 | $ 14.18 | |||
| 500 | $ 14.08 | |||
Description
General part information
RD2458 Series
Terminal/Duck Antenna, Dual Band, Wi-Fi, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, > 6 dBi Peak Gain
