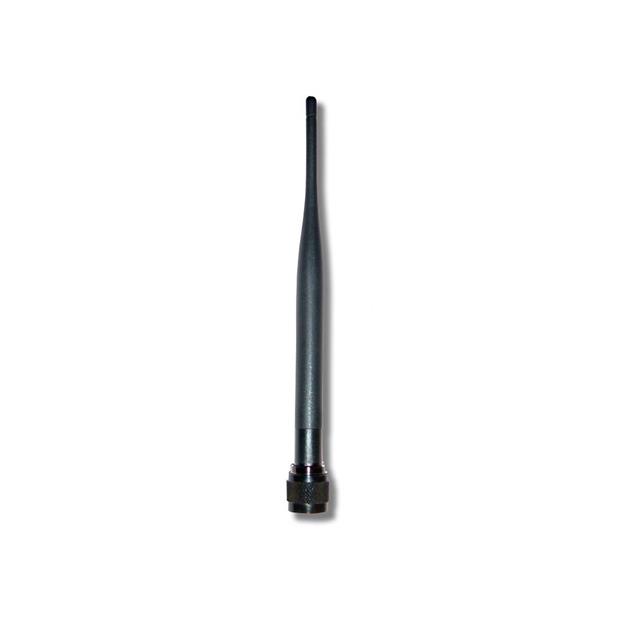

RD2458-5-OTDR-NM
ActiveTE Connectivity Raychem Cable Protection
DIPOL,RDUCK,FIXED,NM 2400-5850MHZ,5DBI,O
Deep-Dive with AI
Search across all available documentation for this part.
RD2458-5-OTDR-NM
ActiveTE Connectivity Raychem Cable Protection
DIPOL,RDUCK,FIXED,NM 2400-5850MHZ,5DBI,O
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RD2458-5-OTDR-NM |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | WiMax™, Wi-Fi |
| Frequency (Center/Band) | 2.4 GHz, 5.8 GHz, 5.3 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.35 GHz, 5.85 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz, 5.725 GHz |
| Height (Max) [Max] [z] | 7.598 in |
| Height (Max) [Max] [z] | 193 mm |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | WiFi |
| Termination | N Type Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.53 | |
| 10 | $ 20.78 | |||
| 25 | $ 19.84 | |||
| 100 | $ 17.74 | |||
| 250 | $ 16.93 | |||
| 500 | $ 16.11 | |||
Description
General part information
RD2458 Series
Terminal/Duck Antenna, Triple Band, Wi-Fi, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, > 6 dBi Peak Gain
