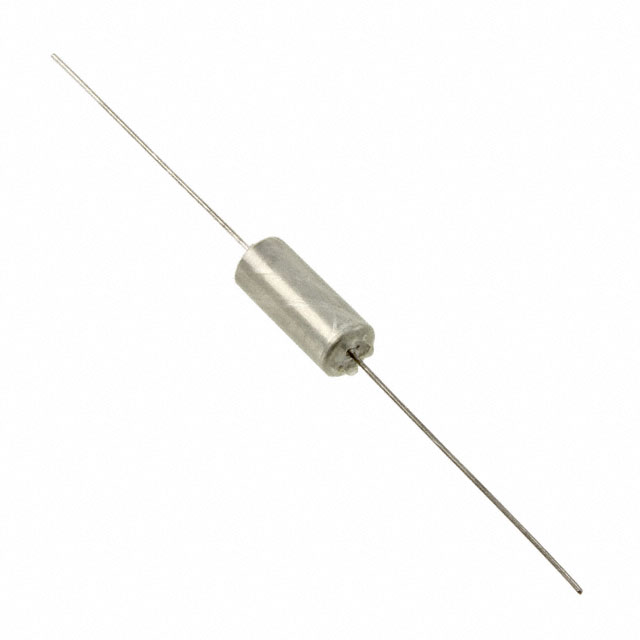

T110C106K075AS

Active

KEMET

CAPACITOR TANTALUM, 10.0UF 75.0V ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T110C106K075AS

Active

KEMET

CAPACITOR TANTALUM, 10.0UF 75.0V ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T110C106K075AS

Capacitance	10 µF
ESR (Equivalent Series Resistance)	1.6 Ohm
Features	General Purpose
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	0.289 in
Size / Dimension [diameter]	7.34 mm
Size / Dimension [x]	17.42 mm
Size / Dimension [x]	0.686 in
Tolerance	10 %
Type	Hermetically Sealed
Voltage - Rated	75 V

T110C Series

Part	Capacitance	Grade	ESR (Equivalent Series Resistance)	Tolerance	Type	Voltage - Rated	Qualification	Package / Case	Features	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]
KEMET T110C156K035AT	15 µF	Military	1.6 Ohm	10 %	Hermetically Sealed	35 V	MIL-PRF-39003/1	Axial	General Purpose	7.34 mm	0.289 in	7.34 mm	0.289 "	-55 °C	125 °C	Through Hole
KEMET T110C825K050AS	8.2 µF	Military	2 Ohm	10 %	Hermetically Sealed	50 VDC	MIL-PRF-39003/1	Axial	General Purpose	7.34 mm	0.289 in	7.34 mm	0.289 "	-55 °C	125 °C	Through Hole
KEMET T110C106K035AS	10 µF		2 Ohms	10 %	Hermetically Sealed	35 V		Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in
KEMET T110C156K050AT	15 µF	Military	1.2 Ohm	10 %	Hermetically Sealed	50 VDC	MIL-PRF-39003/1	Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in
KEMET T110C476M020AS	47 µF	Military	1.2 Ohm	20 %	Hermetically Sealed	20 V	MIL-PRF-39003/1	Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in
KEMET T110C186K050AS	18 µF	Military	1.2 Ohm	10 %	Hermetically Sealed	50 VDC	MIL-PRF-39003/1	Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in
KEMET T110C156K050AS	15 µF	Military	1.2 Ohm	10 %	Hermetically Sealed	50 VDC	MIL-PRF-39003/1	Axial	General Purpose	7.34 mm	0.289 in	7.34 mm	0.289 "	-55 °C	125 °C	Through Hole
KEMET T110C107K010AT	100 µF	Military	1 Ohm	10 %	Hermetically Sealed	10 V	MIL-PRF-39003/1	Axial	General Purpose	7.34 mm	0.289 in	7.34 mm	0.289 "	-55 °C	125 °C	Through Hole
KEMET T110C107K010AS	100 µF	Military	1 Ohm	10 %	Hermetically Sealed	10 V	MIL-PRF-39003/1	Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in
KEMET T110C106K075AS	10 µF		1.6 Ohm	10 %	Hermetically Sealed	75 V		Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.29
		20	$ 24.21
		60	$ 21.45
		100	$ 19.10
		500	$ 17.99
Newark	Each	10	$ 23.02
		25	$ 20.69
		50	$ 18.91
		100	$ 18.50
		250	$ 17.95

Description

General part information

T110C Series

10 µF Hermetically Sealed Tantalum Capacitors 75 V Axial 1.6Ohm
