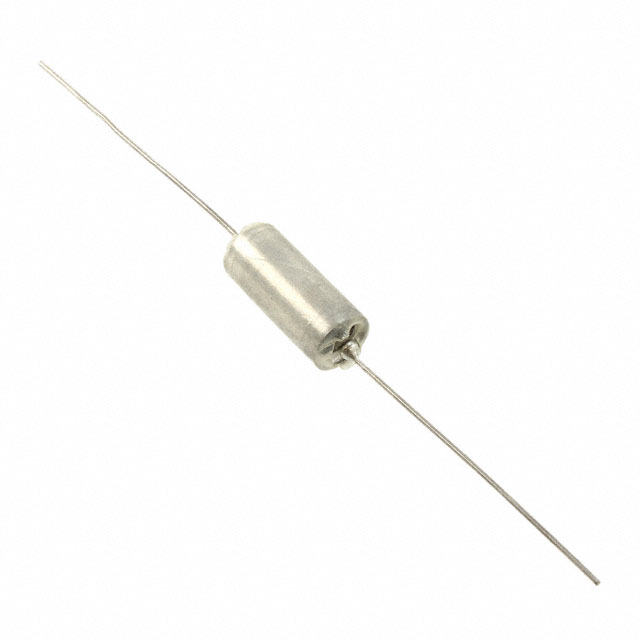

T110C106K035AS

Active

KEMET

CAP, TANTALUM, 10UF, 35V, AXIAL ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T110C106K035AS

T110C106K035AS

Active

KEMET

CAP, TANTALUM, 10UF, 35V, AXIAL ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet T110C106K035AS

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T110C106K035AS

Capacitance	10 µF
ESR (Equivalent Series Resistance)	2 Ohms
Features	General Purpose
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	0.289 in
Size / Dimension [diameter]	7.34 mm
Size / Dimension [x]	17.42 mm
Size / Dimension [x]	0.686 in
Tolerance	10 %
Type	Hermetically Sealed
Voltage - Rated	35 V

T110C Series

Part	Capacitance	Grade	ESR (Equivalent Series Resistance)	Tolerance	Type	Voltage - Rated	Qualification	Package / Case	Features	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]
KEMET T110C156K035AT	15 µF	Military	1.6 Ohm	10 %	Hermetically Sealed	35 V	MIL-PRF-39003/1	Axial	General Purpose	7.34 mm	0.289 in	7.34 mm	0.289 "	-55 °C	125 °C	Through Hole
KEMET T110C825K050AS	8.2 µF	Military	2 Ohm	10 %	Hermetically Sealed	50 VDC	MIL-PRF-39003/1	Axial	General Purpose	7.34 mm	0.289 in	7.34 mm	0.289 "	-55 °C	125 °C	Through Hole
KEMET T110C106K035AS	10 µF		2 Ohms	10 %	Hermetically Sealed	35 V		Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in
KEMET T110C156K050AT	15 µF	Military	1.2 Ohm	10 %	Hermetically Sealed	50 VDC	MIL-PRF-39003/1	Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in
KEMET T110C476M020AS	47 µF	Military	1.2 Ohm	20 %	Hermetically Sealed	20 V	MIL-PRF-39003/1	Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in
KEMET T110C186K050AS	18 µF	Military	1.2 Ohm	10 %	Hermetically Sealed	50 VDC	MIL-PRF-39003/1	Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in
KEMET T110C156K050AS	15 µF	Military	1.2 Ohm	10 %	Hermetically Sealed	50 VDC	MIL-PRF-39003/1	Axial	General Purpose	7.34 mm	0.289 in	7.34 mm	0.289 "	-55 °C	125 °C	Through Hole
KEMET T110C107K010AT	100 µF	Military	1 Ohm	10 %	Hermetically Sealed	10 V	MIL-PRF-39003/1	Axial	General Purpose	7.34 mm	0.289 in	7.34 mm	0.289 "	-55 °C	125 °C	Through Hole
KEMET T110C107K010AS	100 µF	Military	1 Ohm	10 %	Hermetically Sealed	10 V	MIL-PRF-39003/1	Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in
KEMET T110C106K075AS	10 µF		1.6 Ohm	10 %	Hermetically Sealed	75 V		Axial	General Purpose		0.289 in	7.34 mm		-55 °C	125 °C	Through Hole	17.42 mm	0.686 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.44
		20	$ 11.51
		60	$ 9.95
		100	$ 8.96
		500	$ 8.27
		1000	$ 7.78
Newark	Each	1	$ 11.48
		10	$ 10.90
		25	$ 10.13
		50	$ 8.88
		100	$ 8.28
		250	$ 8.00
		500	$ 7.40
