WS2118E00A

Active

Jorjin Technologies Inc.

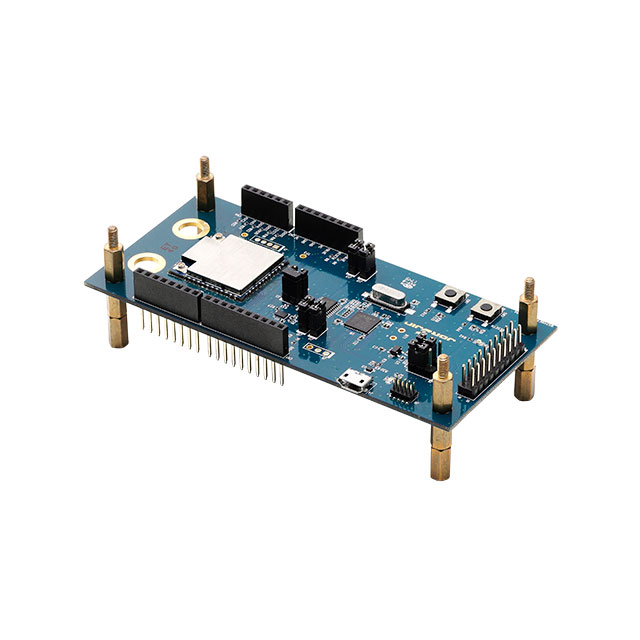

EVALUATION BOARD FOR WS2118-00

Search across all available documentation for this part.

Active

Jorjin Technologies Inc.

EVALUATION BOARD FOR WS2118-00

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WS2118E00A	WS2118 Series

Antenna Type	-	Antenna Not Included, U.FL
For Use With/Related Products	WS2118-00	WS2118-00
Frequency	2.4 GHz	2.4 GHz
Frequency	-	923 MHz
Frequency	-	868 MHz
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Protocol	-	Sigfox
RF Family/Standard	-	Bluetooth, General ISM < 1GHz
Serial Interfaces	-	UART, I2C, SPI
Supplied Contents	Board(s)	Board(s)
Type	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE), Sigfox	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE), Sigfox
Utilized IC / Part	-	ST BlueNRG-1, S2-LP

RF TXRX MOD BT ISM<1GHZU.FL SMD

Part	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Serial Interfaces	Antenna Type	Frequency [Max]	Frequency [Min]	Protocol	Mounting Type	RF Family/Standard	Supplied Contents	Type	For Use With/Related Products	Frequency
Jorjin Technologies Inc. WS2118-00	S2-LP, ST BlueNRG-1	85 °C	-40 °C	Module	I2C, SPI, UART	Antenna Not Included, U.FL	923 MHz	868 MHz	Sigfox	Surface Mount	Bluetooth, General ISM < 1GHz
Jorjin Technologies Inc. WS2118E00A												Board(s)	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE), Sigfox	WS2118-00	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 150.00

General part information

WS2118-00 - Transceiver; Bluetooth® Smart 4.x Low Energy (BLE), Sigfox 2.4GHz Evaluation Board
