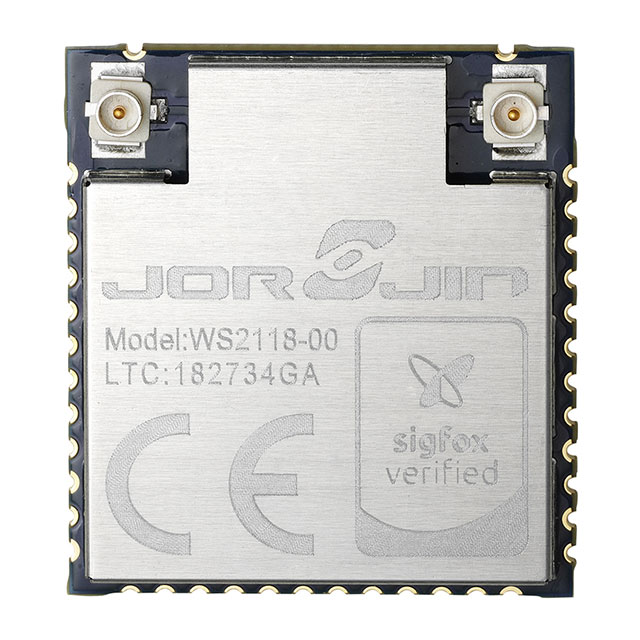

WS2118-00

Active

Jorjin Technologies Inc.

RF TXRX MOD BT ISM<1GHZU.FL SMD

Search across all available documentation for this part.

Active

Jorjin Technologies Inc.

RF TXRX MOD BT ISM<1GHZU.FL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WS2118-00	WS2118 Series

Antenna Type	Antenna Not Included, U.FL	Antenna Not Included, U.FL
For Use With/Related Products	-	WS2118-00
Frequency	-	2.4 GHz
Frequency [Max]	923 MHz	923 MHz
Frequency [Min]	868 MHz	868 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Protocol	Sigfox	Sigfox
RF Family/Standard	Bluetooth, General ISM < 1GHz	Bluetooth, General ISM < 1GHz
Serial Interfaces	UART, I2C, SPI	UART, I2C, SPI
Supplied Contents	-	Board(s)
Type	-	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE), Sigfox
Utilized IC / Part	ST BlueNRG-1, S2-LP	ST BlueNRG-1, S2-LP

RF TXRX MOD BT ISM<1GHZU.FL SMD

Part	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Serial Interfaces	Antenna Type	Frequency [Max]	Frequency [Min]	Protocol	Mounting Type	RF Family/Standard	Supplied Contents	Type	For Use With/Related Products	Frequency
Jorjin Technologies Inc. WS2118-00	S2-LP, ST BlueNRG-1	85 °C	-40 °C	Module	I2C, SPI, UART	Antenna Not Included, U.FL	923 MHz	868 MHz	Sigfox	Surface Mount	Bluetooth, General ISM < 1GHz
Jorjin Technologies Inc. WS2118E00A												Board(s)	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE), Sigfox	WS2118-00	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth, General ISM < 1GHz Sigfox Transceiver Module 868MHz ~ 923MHz Antenna Not Included, U.FL Surface Mount
