B12JJVC
ActiveNKK Switches
SUBMINIATURE FULLY ILLUMINATED TOGGLE
Deep-Dive with AI
Search across all available documentation for this part.
B12JJVC
ActiveNKK Switches
SUBMINIATURE FULLY ILLUMINATED TOGGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B12JJVC |
|---|---|
| Actuator Length [x] | 6.3 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Illuminated |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 1.95 VDC |
| Mounting Type | Through Hole, Vertical, Right Angle |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
B12JJ Series
| Part | Mounting Type | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Circuit | Actuator Length [x] | Actuator Type | Voltage Rating - DC | Features | Termination Style | Illumination Type, Color | Voltage Rating - AC | Bushing Thread | Actuator Material | Switch Function | Illumination Voltage (Nominal) | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Right Angle Through Hole Vertical | 50000 Cycles | 55 °C | -25 °C | 0.4 VA | SPDT | 6.3 mm | Standard Round | 28 V | Epoxy Sealed Terminals | PC Pin | LED Red | 28 V | Unthreaded | Nylon Polyamide (PA) | On-On | 1.95 VDC | Illuminated |
NKK Switches | Through Hole Right Angle | 50000 Cycles | 55 °C | -25 °C | 0.4 VA | SPDT | 6.3 mm | Standard Round | 28 V | Epoxy Sealed Terminals | PC Pin | LED Red | 28 V | Unthreaded | Nylon Polyamide (PA) | On-On | 1.95 VDC | Illuminated |
NKK Switches | Right Angle Through Hole Vertical | 50000 Cycles | 55 °C | -25 °C | 0.4 VA | SPDT | 6.3 mm | Standard Round | 28 V | Epoxy Sealed Terminals | PC Pin | Green/Red LED | 28 V | Unthreaded | Nylon Polyamide (PA) | On-On | 1.95 VDC 3.3 VDC | Illuminated |
NKK Switches | Through Hole Right Angle | 50000 Cycles | 55 °C | -25 °C | 0.4 VA | SPDT | 6.3 mm | Standard Round | 28 V | Epoxy Sealed Terminals | PC Pin | Green/Red LED | 28 V | Unthreaded | Nylon Polyamide (PA) | On-On | 1.95 VDC 3.3 VDC | Illuminated |
NKK Switches | Right Angle Through Hole Vertical | 50000 Cycles | 55 °C | -25 °C | 0.4 VA | SPDT | 6.3 mm | Standard Round | 28 V | Epoxy Sealed Terminals | PC Pin | Amber LED | 28 V | Unthreaded | Nylon Polyamide (PA) | On-On | 2 VDC | Illuminated |
NKK Switches | Through Hole Right Angle | 50000 Cycles | 55 °C | -25 °C | 0.4 VA | SPDT | 6.3 mm | Standard Round | 28 V | Epoxy Sealed Terminals | PC Pin | Amber LED | 28 V | Unthreaded | Nylon Polyamide (PA) | On-On | 2 VDC | Illuminated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
B12JJ Series

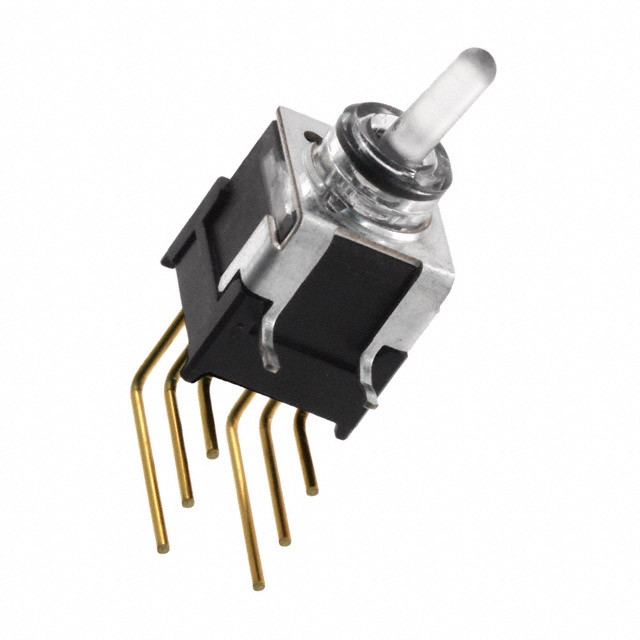

Toggle Switch SPDT Through Hole, Right Angle, Vertical
