B12JJVCF

Active

NKK Switches

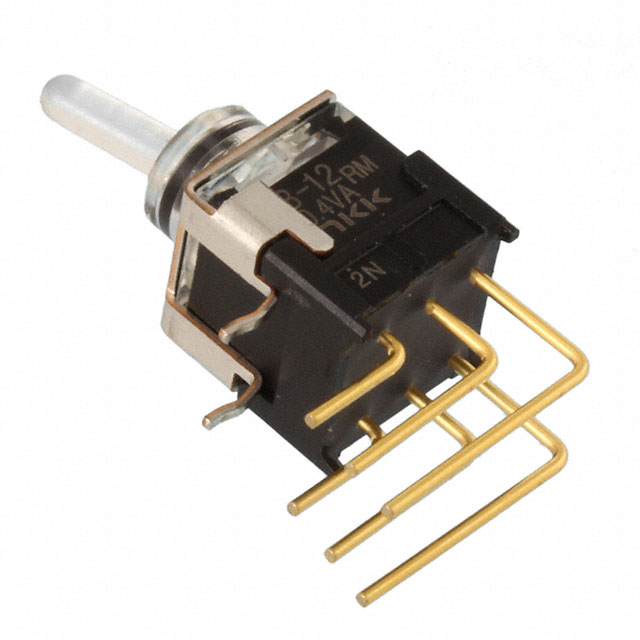

TOGGLE SWITCH, ON-ON, SPDT, ILLUMINATED, B - ILLUMINATED SERIES, 100 MA, PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

B12JJVCF

Active

NKK Switches

TOGGLE SWITCH, ON-ON, SPDT, ILLUMINATED, B - ILLUMINATED SERIES, 100 MA, PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B12JJVCF

Actuator Length [x]	6.3 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Illuminated
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	3.3 VDC, 1.95 VDC
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

B12JJ Series

Part	Mounting Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Circuit	Actuator Length [x]	Actuator Type	Voltage Rating - DC	Features	Termination Style	Illumination Type, Color	Voltage Rating - AC	Bushing Thread	Actuator Material	Switch Function	Illumination Voltage (Nominal)	Illumination
NKK Switches B12JJVC	Right Angle Through Hole Vertical	50000 Cycles	55 °C	-25 °C	0.4 VA	SPDT	6.3 mm	Standard Round	28 V	Epoxy Sealed Terminals	PC Pin	LED Red	28 V	Unthreaded	Nylon Polyamide (PA)	On-On	1.95 VDC	Illuminated
NKK Switches B12JJHC	Through Hole Right Angle	50000 Cycles	55 °C	-25 °C	0.4 VA	SPDT	6.3 mm	Standard Round	28 V	Epoxy Sealed Terminals	PC Pin	LED Red	28 V	Unthreaded	Nylon Polyamide (PA)	On-On	1.95 VDC	Illuminated
NKK Switches B12JJVCF	Right Angle Through Hole Vertical	50000 Cycles	55 °C	-25 °C	0.4 VA	SPDT	6.3 mm	Standard Round	28 V	Epoxy Sealed Terminals	PC Pin	Green/Red LED	28 V	Unthreaded	Nylon Polyamide (PA)	On-On	1.95 VDC 3.3 VDC	Illuminated
NKK Switches B12JJHCF	Through Hole Right Angle	50000 Cycles	55 °C	-25 °C	0.4 VA	SPDT	6.3 mm	Standard Round	28 V	Epoxy Sealed Terminals	PC Pin	Green/Red LED	28 V	Unthreaded	Nylon Polyamide (PA)	On-On	1.95 VDC 3.3 VDC	Illuminated
NKK Switches B12JJVD	Right Angle Through Hole Vertical	50000 Cycles	55 °C	-25 °C	0.4 VA	SPDT	6.3 mm	Standard Round	28 V	Epoxy Sealed Terminals	PC Pin	Amber LED	28 V	Unthreaded	Nylon Polyamide (PA)	On-On	2 VDC	Illuminated
NKK Switches B12JJHD	Through Hole Right Angle	50000 Cycles	55 °C	-25 °C	0.4 VA	SPDT	6.3 mm	Standard Round	28 V	Epoxy Sealed Terminals	PC Pin	Amber LED	28 V	Unthreaded	Nylon Polyamide (PA)	On-On	2 VDC	Illuminated
