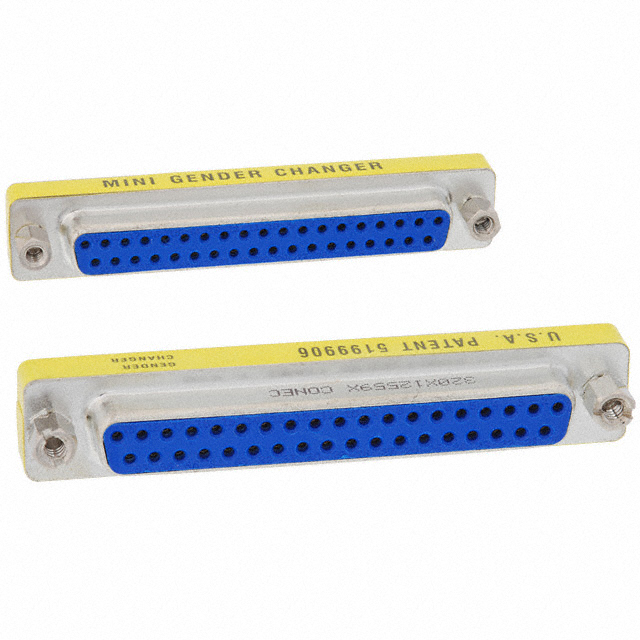

320X12559X

Active

Amphenol CONEC

DSUB GENDER CHANGER DB37F DB37F

Search across all available documentation for this part.

Active

Amphenol CONEC

DSUB GENDER CHANGER DB37F DB37F

Technical Specifications

Parameters and characteristics for this part

Specification	320X12559X

Connector Style	Gender Changer
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Convert From (Adapter End)	D-Sub, 37 Pin Female
Convert To (Adapter End)	D-Sub, 37 Pin Female
Current Rating (Amps)	7.5 A
Housing Color	Yellow
Includes	1 Connector, 4 Jack Screws
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Voltage Rating	125 VDC

Part	Number of Rows	Contact Finish	Contact Finish Thickness	Mounting Type	Housing Color	Voltage Rating	Includes	Convert From (Adapter End)	Material Flammability Rating	Connector Style	Current Rating (Amps)	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish Thickness	Contact Finish Thickness
Amphenol CONEC 320X12509X	2	Gold	Flash	Free Hanging (In-Line)	Yellow	125 VDC	1 Connector 2 Jack Screws	D-Sub 9 Pin Male	UL94 V-0	Gender Changer	7.5 A	9 Pin Male D-Sub	-55 °C	125 °C	Grounding Indents
Amphenol CONEC 320X12529X	2	Gold	Flash	Free Hanging (In-Line)	Yellow	125 VDC	1 Connector 2 Jack Screws	D-Sub 15 Pin Male	UL94 V-0	Gender Changer	7.5 A	D-Sub 15 Pin Male	-55 °C	125 °C	Grounding Indents
Amphenol CONEC 320X12539X	2	Gold		Free Hanging (In-Line)	Yellow	125 VDC	1 Connector 4 Jack Screws	D-Sub 15 Pin Female	UL94 V-0	Gender Changer	7.5 A	D-Sub 15 Pin Female	-55 °C	125 °C		8 çin	0.203 çm
Amphenol CONEC 320X12559X	2	Gold		Free Hanging (In-Line)	Yellow	125 VDC	1 Connector 4 Jack Screws	D-Sub 37 Pin Female	UL94 V-0	Gender Changer	7.5 A	37 Pin Female D-Sub	-55 °C	125 °C		8 çin	0.203 çm
Amphenol CONEC 320X12519X	2	Gold		Free Hanging (In-Line)	Yellow	125 VDC	1 Connector 4 Jack Screws	D-Sub 9 Pin Female	UL94 V-0	Gender Changer	7.5 A		-55 °C	125 °C		8 çin	0.203 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Connector D-Sub, 37 Pin Female To D-Sub, 37 Pin Female Free Hanging (In-Line)
