320X12539X
ActiveAmphenol CONEC

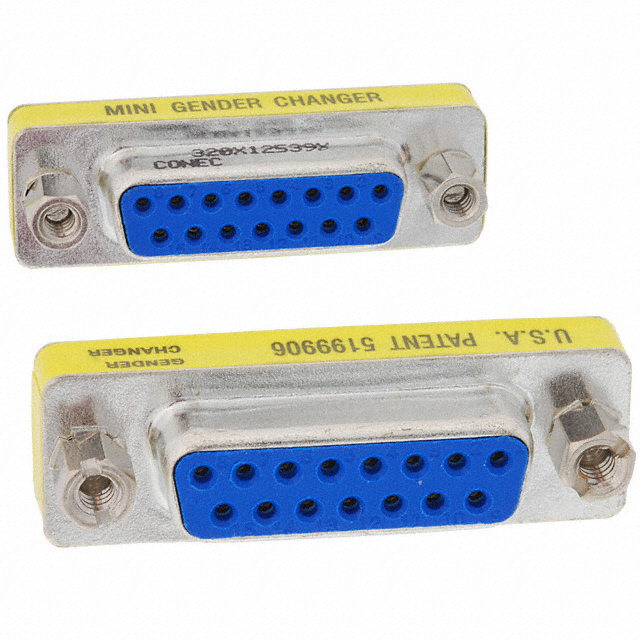

DSUB GENDER CHANGER DB15F DB15F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
320X12539X
ActiveAmphenol CONEC
DSUB GENDER CHANGER DB15F DB15F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 320X12539X |
|---|---|
| Connector Style | Gender Changer |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Convert From (Adapter End) | D-Sub, 15 Pin Female |
| Convert To (Adapter End) | D-Sub, 15 Pin Female |
| Current Rating (Amps) | 7.5 A |
| Housing Color | Yellow |
| Includes | 1 Connector, 4 Jack Screws |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.11 | |
| 10 | $ 4.68 | |||
| 25 | $ 4.22 | |||
| 40 | $ 4.00 | |||
| 80 | $ 3.71 | |||
| 230 | $ 3.32 | |||
| 440 | $ 3.11 | |||
| 945 | $ 2.88 | |||
| 2400 | $ 2.63 | |||
Description
General part information
320X125 Series
Adapter Connector D-Sub, 15 Pin Female To D-Sub, 15 Pin Female Free Hanging (In-Line)
