Technical Specifications
Parameters and characteristics for this part
| Specification | ZXLD1370EST16TC |
|---|---|
| Dimming | PWM |
| Frequency | 1 MHz |
| Grade | Automotive |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

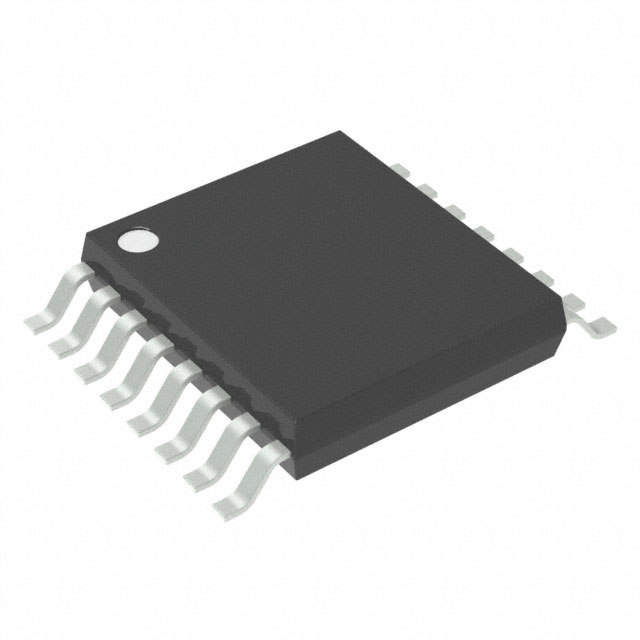

| Package / Case | Exposed Pad, 16-TSSOP |
| Package / Case [custom] | 0.173 " |
| Package / Case [custom] | 4.4 mm |
| Qualification | AEC-Q100 |
| Supplier Device Package | 16-TSSOP-EP |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Type | DC DC Controller |
| Voltage - Supply (Min) [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.87 | |
| 10 | $ 2.58 | |||
| 25 | $ 2.44 | |||
| 100 | $ 2.12 | |||
| 250 | $ 2.01 | |||
| 500 | $ 1.80 | |||
| 1000 | $ 1.52 | |||
| Digi-Reel® | 1 | $ 2.87 | ||
| 10 | $ 2.58 | |||
| 25 | $ 2.44 | |||
| 100 | $ 2.12 | |||
| 250 | $ 2.01 | |||
| 500 | $ 1.80 | |||
| 1000 | $ 1.52 | |||
| Tape & Reel (TR) | 2500 | $ 1.43 | ||
| 5000 | $ 1.36 | |||
Description
General part information
ZXLD1370Q Series
The ZXLD1370 is an LED driver controller IC for driving external MOSFETs to drive high current LEDs. It is a multi-topology controller enabling it to efficiently control the current through series connected LEDs. The multi-topology enables it to operate in buck, boost and buck-boost configurations.
