ZXLD1370/1EV4

Active

Diodes Inc

EVAL BOARD FOR ZXLD1370 ZXLD1371

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZXLD1370/1EV4

Contents	Board(s)
Current - Output / Channel	1.5 A
Outputs and Type	1 Non-Isolated Output
Utilized IC / Part	ZXLD1371, ZXLD1370
Voltage - Input [Max]	30 V
Voltage - Input [Min]	10 V
Voltage - Output	27 V

ZXLD1370Q Series

Part	Supplier Device Package	Applications	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Frequency [Min]	Frequency [Max]	Current - Output / Channel [custom]	Number of Outputs	Mounting Type	Voltage - Supply (Min) [Min]	Type	Package / Case [custom]	Package / Case	Package / Case [custom]	Voltage - Output [Max]	Voltage - Output [Min]	Frequency	Grade	Qualification	Voltage - Output	Outputs and Type	Contents	Current - Output / Channel	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]
Diodes Inc ZXLD1370QESTTC	16-TSSOP-EP	General Purpose	Step-Down (Buck) Step-Up (Boost)	-40 °C	125 °C	PWM	300 kHz	1 MHz	18 mA	1	Surface Mount	8 V	DC DC Controller	0.173 "	16-TSSOP Exposed Pad	4.4 mm	60 VDC	1.25 V
Diodes Inc ZXLD1370EST16TC	16-TSSOP-EP		Step-Down (Buck) Step-Up (Boost)	-40 °C	125 ¯C	PWM				1	Surface Mount	6 V	DC DC Controller	0.173 "	16-TSSOP Exposed Pad	4.4 mm			1 MHz	Automotive	AEC-Q100

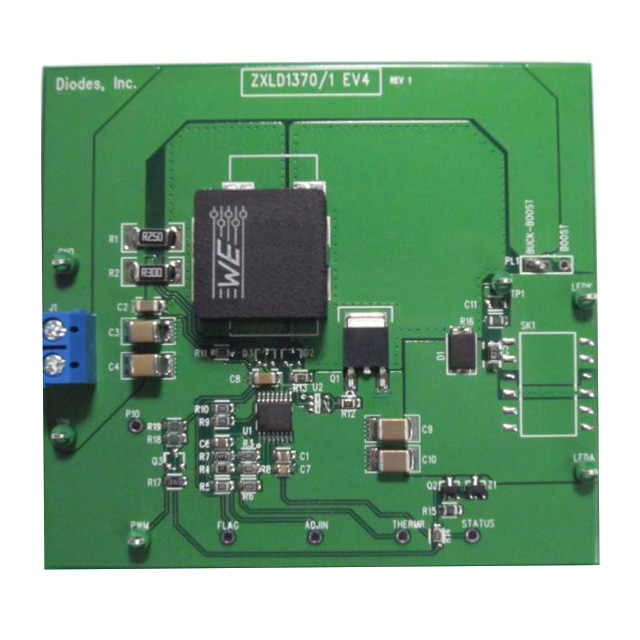

Diodes Inc ZXLD1370/1EV4																						27 V	1 Non-Isolated Output	Board(s)	1.5 A	ZXLD1370 ZXLD1371	30 V	10 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 209.37

Description

General part information

ZXLD1370Q Series

The ZXLD1370 is an LED driver controller IC for driving external MOSFETs to drive high current LEDs. It is a multi-topology controller enabling it to efficiently control the current through series connected LEDs. The multi-topology enables it to operate in buck, boost and buck-boost configurations.
