208-7391-55-1902

Active

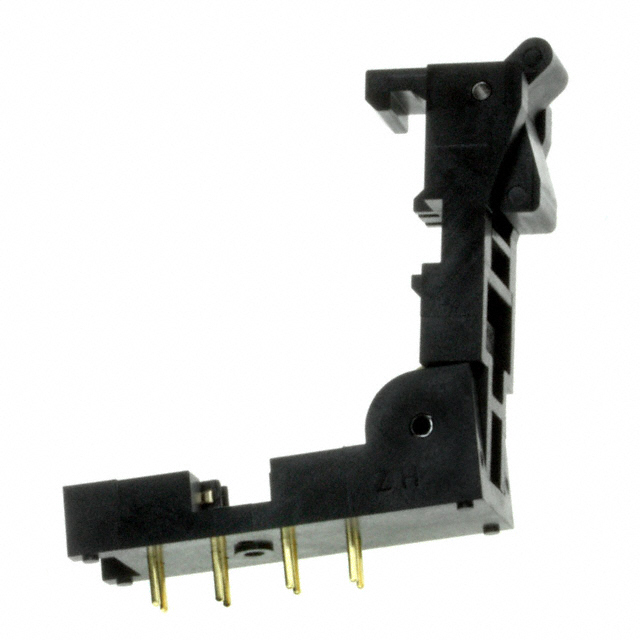

CONN SOCKET SOIC 8POS GOLD

Search across all available documentation for this part.

Active

CONN SOCKET SOIC 8POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	208-7391-55-1902

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	30 µin
Contact Finish Thickness - Post	0.76 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Beryllium Copper
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polyethersulfone (PES), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Termination	Solder
Termination Post Length	3.56 mm
Termination Post Length	0.14 in
Type	SOIC

CONN SOCKET SOIC 8POS GOLD

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Contact Finish - Mating	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Mounting Type	Number of Positions or Pins (Grid)	Contact Material - Post	Termination	Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Features
3M 208-7391-55-1902	30 Áin	0.76 Ám	Beryllium Copper	Gold	UL94 V-0	1 A	3.56 mm	0.14 in	Through Hole	8	Beryllium Copper	Solder	SOIC	30 µin	0.76 µm	Gold	Polyethersulfone (PES), Glass Filled	-55 °C	150 °C	Closed Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (2 x 4) Pos SOIC Socket Gold Through Hole
