ECA-1AM103

Active

Panasonic Industrial Automation Sales

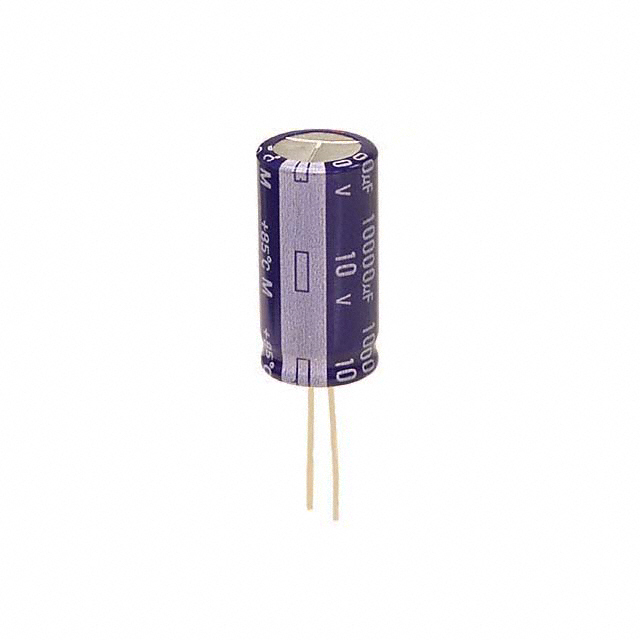

CAP ALUM 10000UF 20% 10V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECA-xxM Spec Sheet

ECA-1AM103

Active

Panasonic Industrial Automation Sales

CAP ALUM 10000UF 20% 10V RADIAL

Deep-Dive with AI

DocumentsDatasheet ECA-xxM Spec Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-1AM103

Applications	General Purpose
Capacitance	10000 µF
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.72 A
Ripple Current @ Low Frequency	1.6 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	10 V

ECA-1AM Series

Part	Package / Case	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Capacitance	Ripple Current @ Low Frequency	Tolerance	Lifetime @ Temp.	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECA-1AM331	Radial Can	561 mA	0.248 in	6.3 mm	0.098 in	2.5 mm	Polar	0.48 "	12.2 mm	85 °C	-40 °C	General Purpose	Through Hole	330 µF	330 mA	20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM471B	Radial Can	680 mA	0.315 "	8 mm	0.197 in	5 mm	Polar			85 °C	-40 °C	General Purpose	Through Hole	470 µF		20 %	2000 Hrs	10 V	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-1AM331B	Radial Can	561 mA	0.248 in	6.3 mm	0.197 in	5 mm	Polar	0.48 "	12.2 mm	85 °C	-40 °C	General Purpose	Through Hole	330 µF	330 mA	20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM101	Radial Can	255 mA	0.197 "	5 mm	0.079 in	2 mm	Polar	0.472 "	12 mm	85 °C	-40 °C	General Purpose	Through Hole	100 µF		20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM332	Radial Can	1.853 A	0.492 in	12.5 mm	0.197 in	5 mm	Polar	0.866 in	22 mm	85 °C	-40 °C	General Purpose	Through Hole	3.3 mF	1.09 A	20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM101B	Radial Can	255 mA	0.197 "	5 mm	0.197 in	5 mm	Polar	0.472 "	12 mm	85 °C	-40 °C	General Purpose	Through Hole	100 µF		20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM222B	Radial Can	1.564 A	0.394 in	10 mm	0.197 in	5 mm	Polar	0.866 in	22 mm	85 °C	-40 °C	General Purpose	Through Hole	2200 µF	920 mA	20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM471BJ	Radial Can	680 mA	0.315 "	8 mm	0.138 in	3.5 mm	Polar	0.48 "	12.2 mm	85 °C	-40 °C	General Purpose	Through Hole	470 µF		20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM682	Radial Can	2.38 A	0.63 in	16 mm	0.295 in	7.5 mm	Polar	1.063 in	27 mm	85 °C	-40 °C	General Purpose	Through Hole	6800 µF	1.4 A	20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM103	Radial Can	2.72 A	0.63 in	16 mm	0.295 in	7.5 mm	Polar			85 °C	-40 °C	General Purpose	Through Hole	10000 µF	1.6 A	20 %	2000 Hrs	10 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.96
		10	$ 1.25
		50	$ 0.96
		100	$ 0.88
		500	$ 0.72
		1000	$ 0.68
		2500	$ 0.63
		5000	$ 0.60

Description

General part information

ECA-1AM Series

10000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
