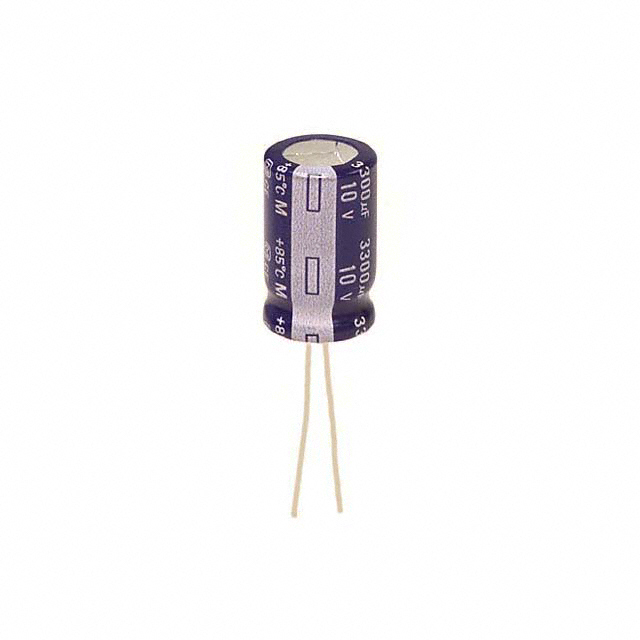

ECA-1AM332

Active

Panasonic Industrial Automation Sales

CAP ALUM 3300UF 20% 10V RADIAL

Deep-Dive with AI

DocumentsECA-xxM Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-1AM332

Applications	General Purpose
Capacitance	3.3 mF
Height - Seated (Max) [Max] [z]	22 mm
Height - Seated (Max) [Max] [z]	0.866 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.853 A
Ripple Current @ Low Frequency	1.09 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	10 V

ECA-1AM Series

Part	Package / Case	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Capacitance	Ripple Current @ Low Frequency	Tolerance	Lifetime @ Temp.	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECA-1AM331	Radial Can	561 mA	0.248 in	6.3 mm	0.098 in	2.5 mm	Polar	0.48 "	12.2 mm	85 °C	-40 °C	General Purpose	Through Hole	330 µF	330 mA	20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM471B	Radial Can	680 mA	0.315 "	8 mm	0.197 in	5 mm	Polar			85 °C	-40 °C	General Purpose	Through Hole	470 µF		20 %	2000 Hrs	10 V	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-1AM331B	Radial Can	561 mA	0.248 in	6.3 mm	0.197 in	5 mm	Polar	0.48 "	12.2 mm	85 °C	-40 °C	General Purpose	Through Hole	330 µF	330 mA	20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM101	Radial Can	255 mA	0.197 "	5 mm	0.079 in	2 mm	Polar	0.472 "	12 mm	85 °C	-40 °C	General Purpose	Through Hole	100 µF		20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM332	Radial Can	1.853 A	0.492 in	12.5 mm	0.197 in	5 mm	Polar	0.866 in	22 mm	85 °C	-40 °C	General Purpose	Through Hole	3.3 mF	1.09 A	20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM101B	Radial Can	255 mA	0.197 "	5 mm	0.197 in	5 mm	Polar	0.472 "	12 mm	85 °C	-40 °C	General Purpose	Through Hole	100 µF		20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM222B	Radial Can	1.564 A	0.394 in	10 mm	0.197 in	5 mm	Polar	0.866 in	22 mm	85 °C	-40 °C	General Purpose	Through Hole	2200 µF	920 mA	20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM471BJ	Radial Can	680 mA	0.315 "	8 mm	0.138 in	3.5 mm	Polar	0.48 "	12.2 mm	85 °C	-40 °C	General Purpose	Through Hole	470 µF		20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM682	Radial Can	2.38 A	0.63 in	16 mm	0.295 in	7.5 mm	Polar	1.063 in	27 mm	85 °C	-40 °C	General Purpose	Through Hole	6800 µF	1.4 A	20 %	2000 Hrs	10 V
Panasonic Industrial Automation Sales ECA-1AM103	Radial Can	2.72 A	0.63 in	16 mm	0.295 in	7.5 mm	Polar			85 °C	-40 °C	General Purpose	Through Hole	10000 µF	1.6 A	20 %	2000 Hrs	10 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.55
		10	$ 0.38
		50	$ 0.32
		200	$ 0.26
		600	$ 0.22
		1000	$ 0.20

Description

General part information

ECA-1AM Series

3300 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
